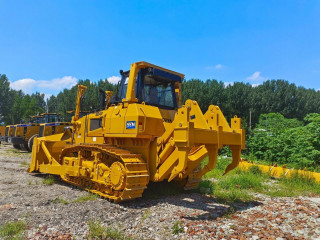

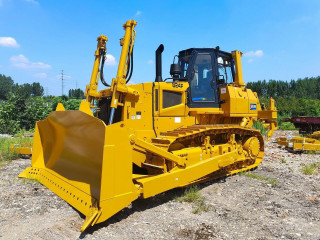

Bulldozer SEM 824F
Vendor code: 130365 17 June 2 0
Bulldozer SEM 824F, Euro II for sale
Replacement of SEM 826D, model produced by CATERPILLAR (QINGZHOU) CO., LTD
- Operating weight with ripper 26,175 kg
- Overall dimensions 7670x4400x3432 mm
- Ground clearance 400 mm
- Max. ground slope 30°
- Engine WEICHAI WD12G250T202
- Engine power 185 kW / 250 hp.
- Ecological class Euro II
- Control type: joystick
- Heater: air conditioner, stove
- Blade type: hemispherical (SU)
- Dump volume 6.4 m3
- Blade width 3700 mm
- Blade height 1520 mm
- Blade depth 570 mm
- Blade lift height 1140 mm
- Ripper: three-post
- Max. ripper depth 737 mm
- Type - oval with balance beam
- Shoe width - 560 mm
- Number of links (each side) - 40 pcs.
- Tape length - 2948 mm
- Track width - 2000 mm
- Number of road wheels - 7 pcs.
- Number of support rollers - 2 pcs.
- Hydraulic system
- Type - open center, joystick (pilot) control
- Pump type - gear
- Transmission
- Type - bi-directional closed hydrostatic system with electronic control
- Propulsion pumps - two axial piston pumps
- Travel motors - two axial piston motors
- Braking system - multi-disc parking brake in oil bath
- State: New
- Payment: Any form of payment
- Documents: Sold with documents
