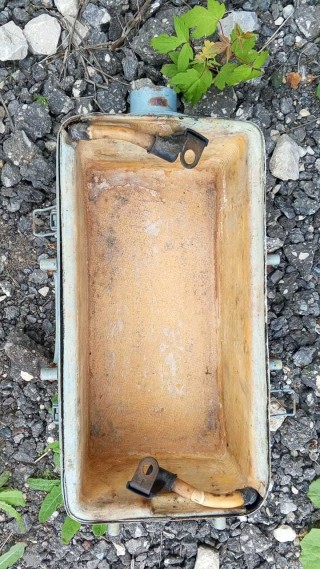

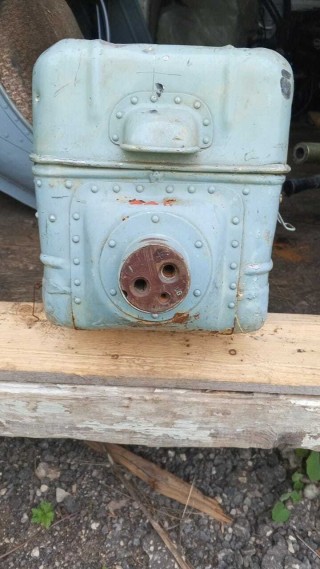

Container for the Mi-8T helicopter battery

The container for the battery of the Mi-8T helicopter is designed to accommodate batteries of type 12-SAM-28 (main battery) and 12-A-10M (emergency power supply). The main technical characteristics of the container include the following aspects:

Purpose and location

• The container is located in the front part of the fuselage on the left under the floor of the cockpit.
• Used to store the main battery 12-САМ-28 and emergency battery 12-А-10М.

Construction

• Made from sheet aluminum 1 mm thick.
• Equipped with special fasteners for fixing batteries inside the case.
• It has a ventilation system to remove gases released by batteries during operation.

Dimensions and weight

• Overall dimensions: length - about 70 cm, width - approximately 30 cm, height - approximately 20-25 cm.
• The weight of an empty container is about 5 kg.

Operating conditions

• Ambient temperature from −50 °C to +50 °C.
• Relative air humidity up to 98% at a temperature of +35 °C.

These data are general characteristics and may vary slightly depending on the modification of the helicopter and the manufacturer of the containers. It is recommended to check the exact specifications in the technical documentation of a specific copy of the Mi-8T helicopter.

• State: Used
