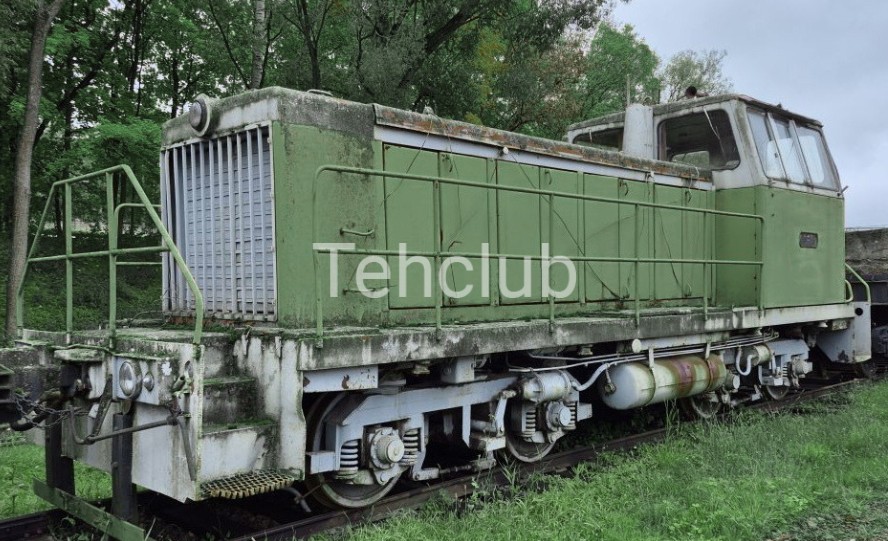

Diesel locomotive TGM40 shunting

Diesel locomotive TGM40 shunting

Single-section shunting diesel locomotive designed for operation on railway tracks of industrial enterprises and 1,520 mm gauge railways.

Manufacturer - Kambarsky Machine-Building Plant.

The diesel locomotive is complete and in good technical condition.

Main technical characteristics

• Diesel power: 294 kW (400 hp).
• Transmission type: hydraulic.
• Axial formula of the diesel locomotive: 2 - 2.
• Service weight: 40 tons with a permissible deviation of ±3%.
• Axle load on rail: 98 kN (10 tf).
• Design speed: 40 km/h.
• Minimum curve radius: 40 meters.
• Fuel capacity: 1,000 kg.
• Sand reserve: 700 kg.
• Dimensions of the diesel locomotive: length 11,290 mm, width 3,250 mm, height 3,990 mm.
• Track width: 1,520 mm.
• The locomotive is equipped with a 12-cylinder diesel engine of the 1D12-400B brand.
• Transmission: hydrodynamic UGP-400/201.

Design Features

• Body of hood type with two control posts.
• Hydraulic transmission with two torque converters (starting and main).
• Driver's cabin with improved visibility and thermal insulation.
• Can be equipped with a snow blower (modification TGM40S).

TGM40 It is characterized by high reliability, ease of maintenance and the ability to operate in various climatic zones, including the tropics.

Additional information on request.

• State: Used
• Documents: Sold with documents
