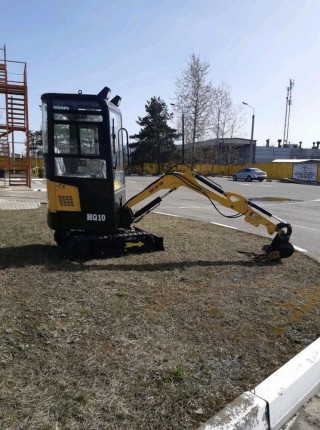

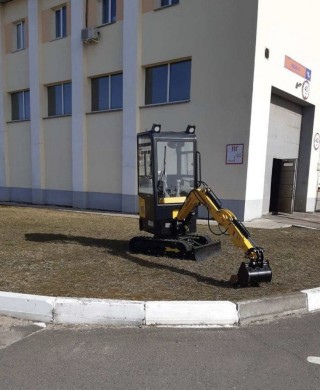

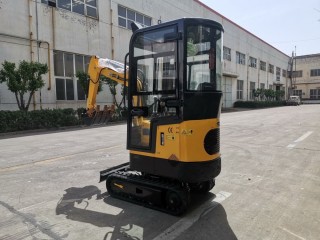

Mini-Excavator HQ 10
Vendor code: 47092 07 June 1813 42
Mini-Excavator HQ 10 Technical parameters:
volume of the bucket - 0.025 m3
The width of the bucket is 350 mm Complete a fast adapter, a planning bucket 800 mm
Engine - COOR KD192FA (Euro V), diesel, diesel engine, diesel 1 -non -cylinder,
air cooling, power 7.6 kW/2400 vol./Min
Pressure in the hydraulic system - 16 MPa
The speed of movement - 2 km/h
Type type - rubber caterpillar
overcoming slope - 35º
digging force - 8.2 kn
The strength of the boom - 5.3 kn
size (length * width * height) - 2770 x 920 x 2220 mm
caterpillars (length * width) - 1210 x 280 mm
The width of the chassis - 900 mm
Roosts - 150 mm
maximum dump depth - 1750 mm
maximum digging height - 2450 mm
maximum radius Digging - 2500 mm
The minimum rotation radius -1200 mm
is glazed cabin, fan, fire extinguisher, zip
Guarantee 1 year.
- State: New
- Payment: Any form of payment
- Documents: Sold with documents
Show full
