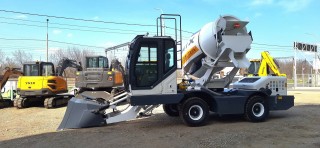

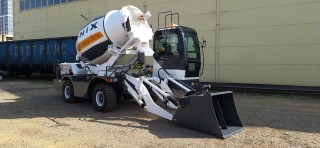

Concrete mixer Ynix QGMC3000

Concrete mixer Ynix QGMC3000 (12 m3/h)

Specifications:

• Country of origin - China;
• Drum volume - 4.8 m3;
• Productivity per batch - up to 3.0 m3;
• Productivity per hour - 12 m3;
• Operating weight - 7050 kg;
• Bucket - 350 l. with hydraulic control;
• Cabin - Extended comfortable;
• Overall dimensions - 6500x2400x3300 mm;
• Horizontal rotation - 270°;
• Loading ratio - 65%;
• Control type - 4-channel joystick. hydraulically with a button for electrically controlling the operation of the bucket;
• Engine - YN38GBZ, Diesel, water-cooled, 4 cylinders;
• Engine power - 76 kW (104 hp);
• The hydraulic system is an open oil supply; two gear pumps are involved in the operation;
• Water tank - 300 l;
• Fuel tank - 110 l;
• Tray - equipped with two pins to increase the unloading range;
• Water supply system - self-priming water pump with hydraulic drive;
• Steering system - hydraulic, front wheels turn;
• Electrical system - 24 V;
• Transmission - 4x4;
• Tires - 23.5/70-16 with metal cord.

Equipment:

• Digital water volume meter;
• High pressure washer;
• Electronic weighing system;
• Printer for preparing reports;
• Computer;
• Rear view camera;
• Air conditioning/heater;
• The bucket is equipped with a bag cutter;
• Vibration motors on the bucket and receiving tray prevent sticking.

• State: New
• Payment: Any form of payment
• Documents: Sold with documents
