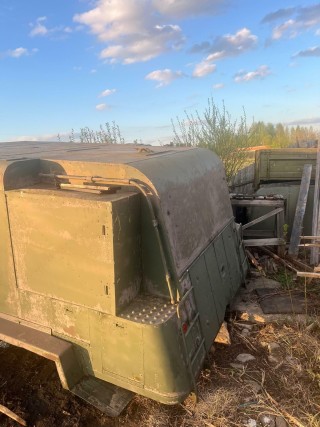

Smoke machine TDA-M and TDA-U
Vendor code: 130387 30 June 12 0
A means of effective camouflage - smoke machine TDA-M and TDA-U
The TDA-M smoke machine is mounted on the chassis of a GAZ-66 car, the TDA-U is mounted on the chassis of a URAL car and is intended for setting up smoke screens, as well as disinfecting the area with insecticidal aerosols. The operating principle is based on the thermal evaporation of a smoke-forming substance followed by condensation of vapors in the atmosphere.
There are 3 installations available. From storage. Have not been in use.
Main technical characteristics:
| Parameter | Meaning |
|---|---|
| Calculation | 2 people |
| Weight (curb) | ~5.8 t |
| Dimensions (LxWxH) | 5.6 × 2.3 × 2.4 m |
| Tank capacity | 1400 l (working - 1200 l) |
| Smoke performance | 300–800 l/h |
| Length of blind curtain | up to 1 km (with wind ~3 m/s) |
| Time to reach full power | 1–1.5 min |
| Movement speed during smoke exhaust | 8–20 km/h |
| Insecticide performance | 400–780 l/h |
| Gasoline consumption versus diesel fuel consumption | about 6% |
| Engine power | 120 hp |
| Maximum highway speed | 90 km/h |
The vehicle is capable of quickly creating a dense smoke screen up to a kilometer long, which makes it possible to effectively camouflage military equipment and positions. In addition, it can be used to spray disinfectant or insecticidal solutions.
- State: New
