Wind tunnel Ø 3.0 m

"Wind tunnel" electric 3.0 m double-circuit

Specifications:

Overall dimensions of the structure:

• Width: 19 m.
• Height: 19 m.
• Depth: 12 m.

Overall dimensions of the building:

• 1st floor: 8 m x 12 m, area: 96 m2.
• 2nd floor: 12 m x 12 m, area: 144 m2.

Wind tunnel type:

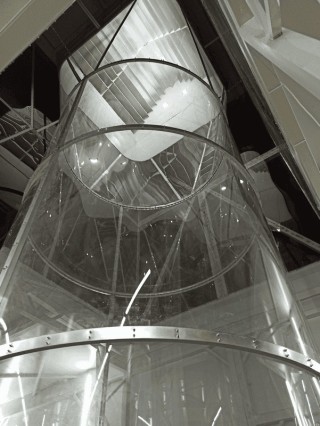

• Flight zone diameter: 3 m.
• Flight zone height: 13 m.
• Transparent part of the flight area (monolithic polycarbonate 10 mm): 9 m.
• Mobile type design: dismountable and assembled with bolts.
• Closed circuit. 2 circuits.
• 2 electric motors of 315 kW each. Electric motors made in Germany, frequency converters made in Japan.
• Forced cooling: cochlea fans.
• Maximum flow speed: 275 km/h.
• All parts of the wind tunnel design are of overall dimensions for transportation of the structure without additional permits from transport companies.

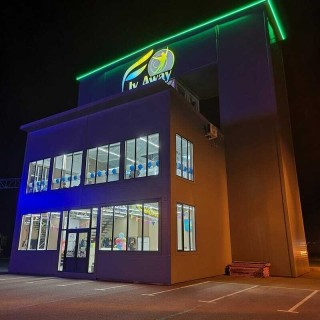

Building information:

• Exterior finishing: sandwich panels (100 mm).

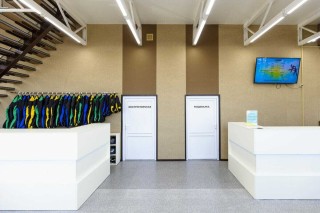

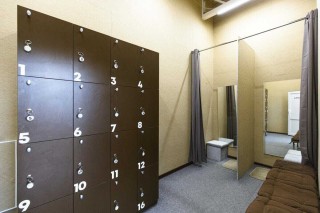

• Interior decoration: first floor, floor - tiles, walls - carpet.
• Second floor: floor - carpet, walls - carpet.

Information for professional skydivers: The wind tunnel is designed for practicing static poses, as well as full dynamics, since the diameter of 3 meters allows you to fully unleash the potential of the whole body.

• State: Used
• Documents: Sold with documents
