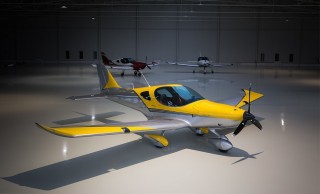

Bristell B23 aircraft

Price by request

Vendor code: 29061 4500 100


The B23 B23 plane looks like a classic Bristell LSA. However, there are differences. The fuselage is longer and the tail is larger, with an aluminum direction of the direction; flaps and stabilizer are larger and better; The composite supports of the main chassis were completely redesigned to be able to transport much higher loads than the previous Bristell models; And the characteristics of the controllability of the aircraft have improved significantly. In addition, the dual function of balancing the height steering wheel helps the pilot optimize the efforts on the control handle.

The maximum take-off weight of the aircraft is 750 kg, and an empty weight-435 kg, which gives a useful load of 315 kg. With a 120 -liter tank, the fuel tank capacity, B23 is a “very good“ cruiser ”, says Bestell. "The glider is designed for a long service life and has a strong design, which makes it especially suitable for flight training," Bestell said.

The main equipment includes a controlled nasal wheel and a ballistic parachute-rescue system of BRS. A standard-equipped plane also meets the requirements for Night-VFR and can be modernized to satisfy the IFR requirements.

Dimensions

  • Wing scope 9274 m
  • Wing area 11.75 m2
  • Wing load 51.06 kg / m2
  • Aircraft length 6585 m
  • Aircraft height 2.36 m
  • Salon width 1.3 m

The weight

  • Empty mass 445 kg
  • Maximum take -off weight: 750 kg
  • Hello load 305 kg
  • Fuel tanning capacity 120 liters
  • Luggage compartment fuselage 15 kg
  • Luggage wing 2 x 20 kg
  • Load coefficient + 4 / -2g

Working speeds:

  • Wilting speed without clicks VS1 48 KCAS
  • Fluffing speed with VSO 41 KCAS
  • The speed of maneuvering VA 98 Keas
  • Maximum rotation frequency of VF 81 Keas
  • The maximum speed of the horizontal flight VH 117 KTS
  • Never exceeded VNE 156 Keas speed

Climb:

  • Pure you 75 thousand.
  • ROC Max 690 FTI / M.
  • VX 60 knots
  • EL 10 You 67 KTS
  • ROC Max 732 foot / min
  • Remote Ride Kren 363 m
  • Take -off distance over the obstacle 50 feet 469 m
  • Landing distance Kren 134 m
  • Landing distance above the obstacle 50 feet 329 m
  • All these speeds are measured with a maximum run of 750 kg.

The deadline for the supply of the aircraft from the date of conclusion of the contract is 1 year.

  • State: Used
  • Payment: Any form of payment
  • Documents: Sold with documents
