Airplane Yak-12

Yak-12 aircraft for sale

The plane is in good working condition. The documents are in order. Garage storage. I can help with the transfer.

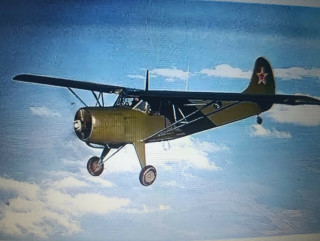

Yak-12 - Soviet light multi-purpose braced high-wing aircraft of mixed design, developed at the A. S. Yakovlev Design Bureau.

Specifications:

Crew: 1 person.

Passenger capacity:

• Basic version (M-11FR): up to 3 people or 2 passengers + cargo;
• Modification Yak-12A/R: up to 3 passengers.

Dimensions:

• Aircraft length: basic version - 8.36 m; modification Yak-12A - 9.00 m;
• Wingspan: basic version - 12.00 m; modification Yak-12A - 12.60 m;
• Wing area: 21.60 m²;
• Height: 3.76 m.

Weight and load:

• Empty weight: 830 kg;
• Maximum take-off weight: basic version - 1185 kg; modification Yak-12A - 1450 kg;
• Payload: approx. 355 kg.

Powerplant:

• Engine: four-stroke five-cylinder radial M-11FR air-cooled (in later versions - AI-14R);
• Engine power: basic version - 160 hp; modification with AI-14R engine - 260 hp.

Flight characteristics:

• Maximum speed: basic version - 194 km/h; modification Yak-12A - 210 km/h;
• Cruising speed: 169 km/h;
• Practical flight range: basic version - 810 km; modification of the Yak-12A - 760 km. (normal), up to 1100 km. (maximum);
• Flight duration: 4 hours;
• Service ceiling: 4100 m;
• Run length: 120 m;
• Run length: 150 m.

Construction and chassis: glider of mixed construction (steel pipes, duralumin, wood, canvas). A non-retractable wheeled chassis for working from unpaved strips over 120 meters long was replaced with skis in winter.

Operation: produced in many modifications (including sanitary versions) since 1947. It was actively used in agriculture, aerial photography and as a communications aircraft. More than 3,000 examples were built; some aircraft remain in service in private flying clubs.

The aircraft was equipped with a non-retractable landing gear, which could be replaced with skis for winter operation. The design of the airframe was combined: the fuselage frame was a welded truss made of steel pipes, the front part was sheathed with duralumin, and the tail part was sheathed with canvas; the wing had a wooden frame and fabric covering. Thanks to the low stall speed and powerful wing mechanization, the vehicle could be operated from short unpaved platforms with a length of 120 meters. It was produced in many modifications (including ambulance versions with space for a stretcher) since 1947, and was actively used in agriculture, aerial photography and as a communications aircraft. Production continued until the mid-1960s, with over 3,000 examples built. Currently, individual machines remain in operation in private flying clubs.

• State: Used
• Payment: Any form of payment
• Documents: Sold with documents
