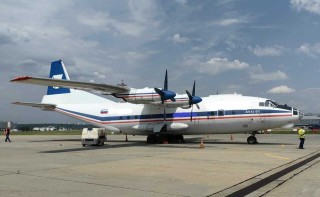

An-12 aircraft

An-12BP aircraft for sale

An-12BP - Soviet military transport aircraft, modification of 1963.

All individual information on board on request.

Brief technical characteristics:

General information:

• Type: Cantilever all-metal monoplane with a top-mounted wing and single-fin tail.
• Year adopted (base model): 1958, release of power supply modification - since 1963.
• Crew: 5–6 people.

Dimensions:

• Wing span - 38.0 m.
• The length of the aircraft is 22.1 m.
• Height - 10.53 m.
• Wing area - 121.7 m².

Weight:

• Empty equipped - 28,000 kg.
• Normal take-off - 55,100 kg.
• Maximum take-off weight is 61,000 kg.

Powerplant:

• Engines - four turboprop AI-20K (later M/Mk) with a power of 4250 hp each. With. every.
• The propellers are four-blade AB-68I variable pitch propellers.

Flight characteristics:

• Maximum speed is 777 km/h.
• Cruising speed is about 650–670 km/h.
• Practical ceiling - 10,200 m.
• Flight range with a load of 16 tons is up to 2500 km; distillation - up to 5700 km.
• Take-off/run length - 800/1000 m (depending on load).

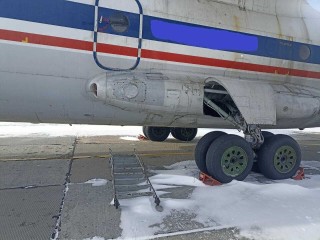

Chassis:

• Type - three-legged retractable.
• Chassis base - 9.58 m, track - 4.92 m.
• The pressure in the pneumatics of the main wheels is 6.5 kgf/cm², the front wheels are 5.0 kgf/cm².

Load capacity and cabin:

• Load capacity - up to 20 tons (normal), up to 21 tons (maximum).
• The volume of the cargo compartment is about 135 m³.

Transport equipment:

• GL-1500DP winches, beam crane for loads up to 2000 kg, TG-12 conveyor for parachute landing.

• State: Used
• Documents: Sold with documents
