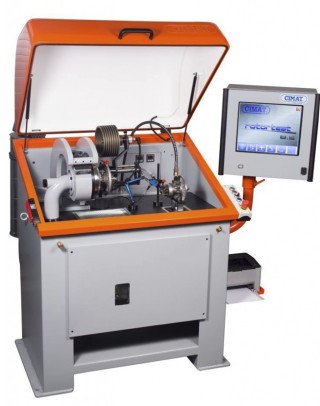

Balancing machine CMT-48 VSR BIG TW
Vendor code: 124351 13 June 134 1
Balancing machine CMT-48 VSR BIG TW
The machine is designed for high- and low-speed balancing of turbocharger cartridges for passenger cars, trucks and quarry equipment weighing up to 16 kg.
The CMT-48 VSR Big Twin balancing machine consists of two stations, one of which is designed for high-speed balancing of turbocharger cartridges in passenger cars and trucks, and the other for low-speed balancing of cartridges in trucks and quarries.
Production time: from 1 to 3 months.
Delivery time: 3-4 weeks.
Dimensions of DShV: 1350 x 1250 x 1850 mm.
Weight: 650 kg.
CMT-48 VSR Big Twin:
Checking the cartridge for leaks.
Balancing at speeds up to 300,000 min - 1.
Control oil temperature and pressure to avoid dry starts.
Compact design designed specifically for small spaces.
Automatic air supply control.
Energy-saving adapters for different types of turbochargers.
The adapter replacement time is no more than 30 s.
Five levels of oil purification.
Balancing program in Russian.
Protective cover included (ISO 7475 and with CE safety mark).
Parameters of the low-speed measuring part:
Rotation speed when balancing ≤ 40,000 rpm.
Maximum core weight 16 kg.
Turbine wheel diameter ≤ 130 mm.
Number of balanced planes - 2.
Установка балансирования малого, среднего, большого ядра:
Rotation speed when balancing ≤ 300,000 rpm.
Maximum rotor diameter 110 mm.
Number of balancing planes (adjustment in two planes is possible) - 1.
Power parameters and dimensions:
Voltage 230 V +/- 10%, 50/60 Hz.
Rotation speed during balancing, rpm - 550 kg.
The diameter of the air supply hose is 1.25″.
The required compressed air pressure is 8 bar.
The required receiver is 1 m3.
- State: New
- Payment: Wire transfer
- Documents: Sold with documents
