Beta-gypsum production line
Vendor code: 130038 25 September 9 0
We offer to supply a line for the production of a Bet-gypsum from China of a full cycle of 14-15 tons per hour (100,000 tons per year) of construction gypsum from natural gypsum of natural humidity.

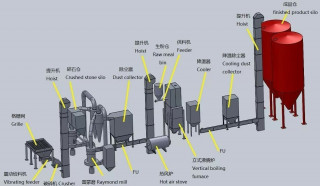

Standard equipment:
1. Section of preparation of raw materials (crushing);
2. Section of drying (drying drum with a gas burner);
3. Grounding section (vertical, pendulum or ball mill);
4. Gypsum boiler (heat transfer area 450 m2);
5. Section of homogenization (silos of 1200 tons);
6. Section of packaging (packaging in bags of 10, 15, 25 kg and Big Baga);
7. Electric cabinet and automatic control system on controllers (delivery with the control cabin is possible);
8. Laboratory.
Description:
Model 100kmty
- Predictable performance: 14-15 tons per hour (100,000 tons per year) of Beta-gypsum from natural gypsum of natural humidity;
- Daily consumption of natural gypsum is about 500 tons (with a moisture content of 15%);
- Installed capacity of 700 kW;
- Daily electricity consumption of about 17,000 kWh;
- Daily gas consumption of about 18000 Nm3;
- Staff-6-7 people per shift;
- The size of the installation in the collected state is about 80*20*8 meters (does not include a warehouse of raw materials and finished products);
- The content of particles in filtered air is about 30-40 mg/m³ (it is possible to decrease using a more modern filtration system);
- Management modes: manual, semi -automatic, fully automatic;
- Type of assembly: modular.
Detailed equipment:
- On request.
The approximate cost of 1 ton of construction gypsum is about 2,950 rubles.
Line payback is about 8-12 months.
- State: Used
- Payment: Wire transfer
- Documents: Sold with documents
Show full
