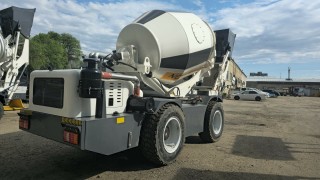

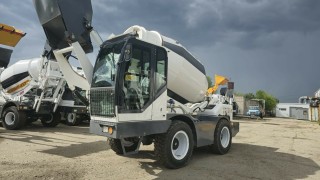

Concrete mixer YNIX QGMC6000

Concrete mixer YNIX QGMC6000 (16 m3/h)

Specifications:

• Drum volume - 7.4 m3;
• Productivity per hour - 24 m3;
• Operating weight - 9000 kg;
• Bucket - 850 l. with hydraulic control;
• Cabin - extended comfortable;
• Overall dimensions - 8250x2520x3710 mm;
• Horizontal rotation - 270°;
• Loading ratio - 80%;
• Control type - joystick 4-channel. hydraulically with a button for electrically controlling the operation of the bucket;
• Engine - Yuchai YCD4P32T-150, Diesel, water-cooled, 4 cylinders;
• Engine power - 110 kW (150 hp);
• The hydraulic system is an open oil supply; two gear pumps are involved in the operation;
• Water tank - 2x400 l;
• Fuel tank - 180 l;
• Tray - equipped with two pins to increase the unloading range;
• Water supply system - self-priming water pump with hydraulic drive;
• Steering system - hydraulic, front wheels turn;
• Tires - 16/70-24 with metal cord.

Equipment:

• Digital water volume meter
• High pressure washer;
• Electronic weighing system;
• Printer for preparing reports;
• Computer;
• Rear view camera;
• Air conditioning/heater;
• The bucket is equipped with a bag cutter;
• Vibration motors on the bucket and receiving tray prevent sticking.

• State: New
• Payment: Any form of payment
• Documents: Sold with documents
