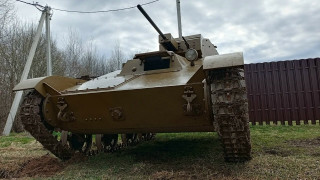

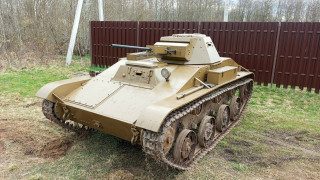

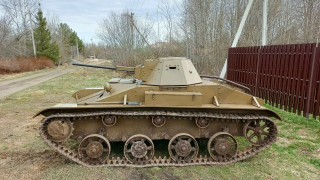

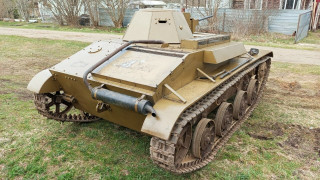

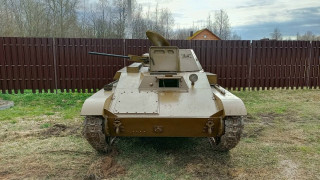

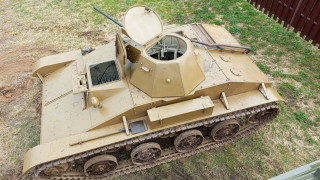

Full-size mockup (replica) of the T-60 tank

Full-size mockup (replica) of the T-60 tank

Model (replica) of a small tank T-60 during the Second World War. It was built in 2015. Made of steel with a thickness of 1.5 - 2.0 mm. on a frame made of profile pipe. On the go. Engine and gearbox from Oka car, 33 hp. Differential rotation (Ford Scorpio rear axle gearbox). The tracks are brand new and consist of welded steel tracks, stylized as original ones, on a conveyor belt. The chassis is also new. The rollers are welded, externally they resemble the rollers of factory No. 264 with internal shock absorption. Homemade torsion bars, made of spring steel. The ride is soft. Maximum speed 25 - 27 km/h.

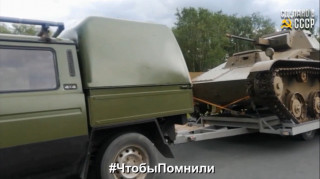

The machine is very light, weighing just over a ton. Based on this, some features of the layout. Asphalt does not spoil. Can be transported by a light trailer. Easily passes through weak soil. Low operating costs (fuel). There is also the other side of the coin. With such a ratio of size and weight, high strength is impossible. You need to drive very carefully, soberly assessing the risks.

The model is not a weapon. The “standard” cannon and machine gun are an external imitation made of a thin-walled pipe. There are mechanisms for turning the turret and vertical aiming of the gun.

It is also not a vehicle, it is not designed for long-term movement, and movement in difficult conditions. Designed for visual effect. Can be used for exhibitions, reconstructions, filming.

Most of the external body parts are non-separable and are made by welding.

There is a certificate with an expert opinion stating that the model is not a historical or cultural value and is not listed in the register of cultural heritage.

• State: Used
• Payment: Any form of payment
• Documents: Sold with documents

Show full
