Helicopter "Scout" transport and passenger
Vendor code: 71771 20 October 1826 51
Light multi-purpose helicopter "Scout" with new generation engines, transport and passenger version
Tasks:
- transportation of passengers and cargo, including to remote and hard-to-reach areas
- use as an air taxi between populated areas
- maintenance of main oil and gas pipelines
- corporate transportation and private flights.

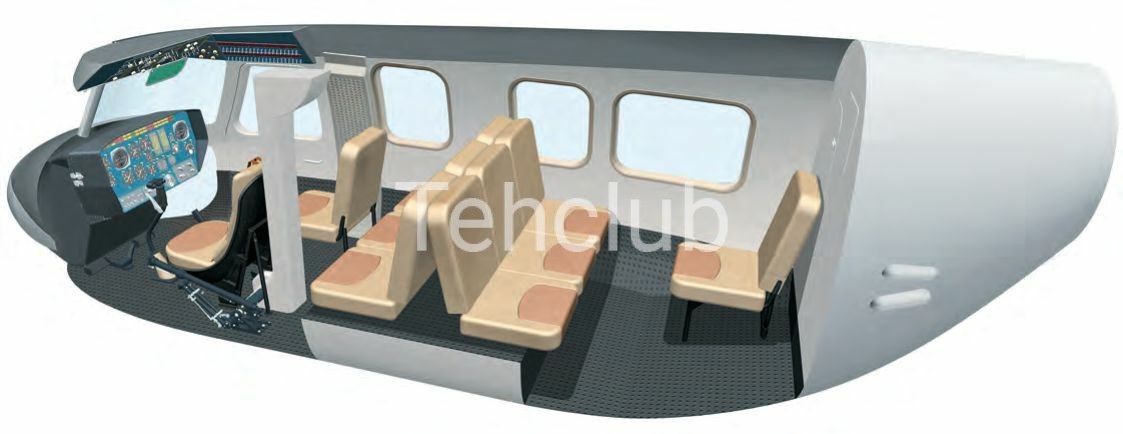

Passenger cabin

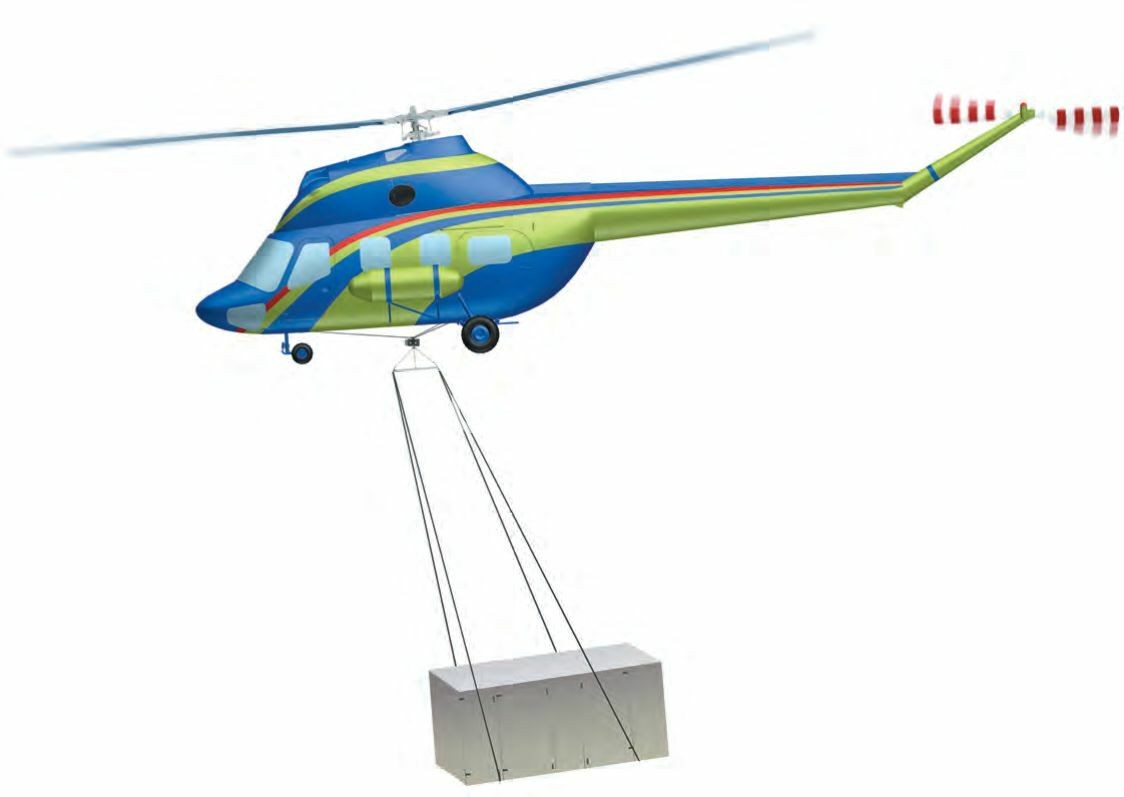

Transportation of goods on an external sling
The helicopter's external suspension system significantly expands its transport capabilities, allowing it to transport large cargo and deliver it to places where it is impossible to land.
In addition, the suspension makes it possible to lay oil pipelines, communication and power lines, and perform installation work.

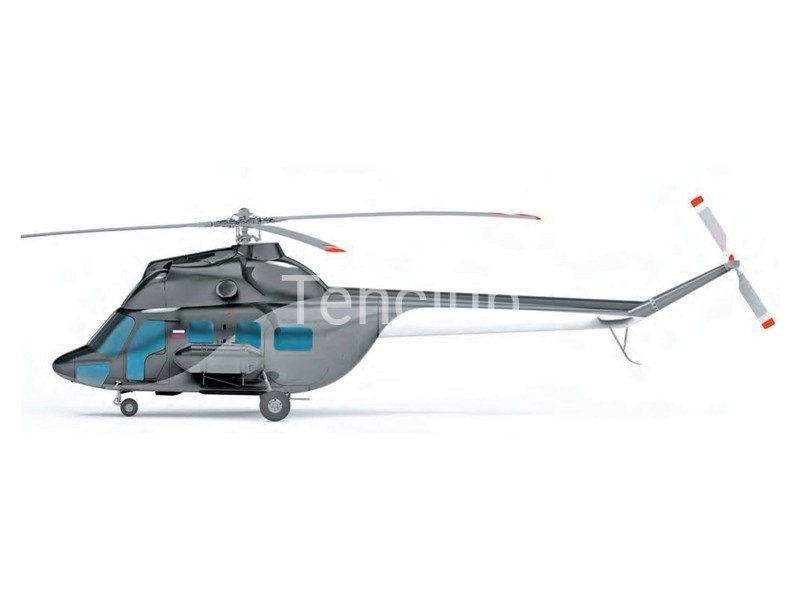

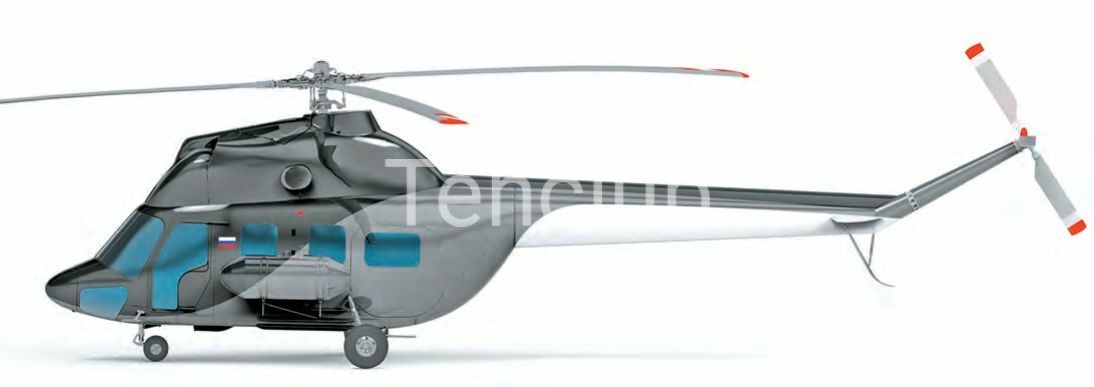

Light multi-purpose helicopter "Scout" with new generation engines
The new light multi-purpose helicopter "Scout" with new generation engines is the result of the implementation of the light helicopter modernization program.
The modernization program involves extending service life by improving technical and economic indicators by installing new-generation engines.
Modernization is carried out simultaneously with capital restoration work, which ensures a reserve of the calendar service life, service life of the helicopter and its components at prices acceptable for operation.
Technical characteristics of the Scout helicopter with new generation engines
Quantity/power, hp | AI-450M-B/2/430 |
Maximum take-off weight, kg | 3 550 |
Crew/passengers, persons | 1/8; 2/7 |
Maximum speed, km/h | 220 |
Cruising speed, km/h | 190 |
Practical ceiling, m | 4 000 |
Flight range with additional tanks (300x2), km | 1 000 |

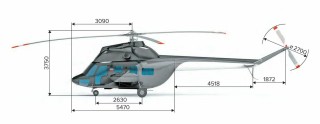

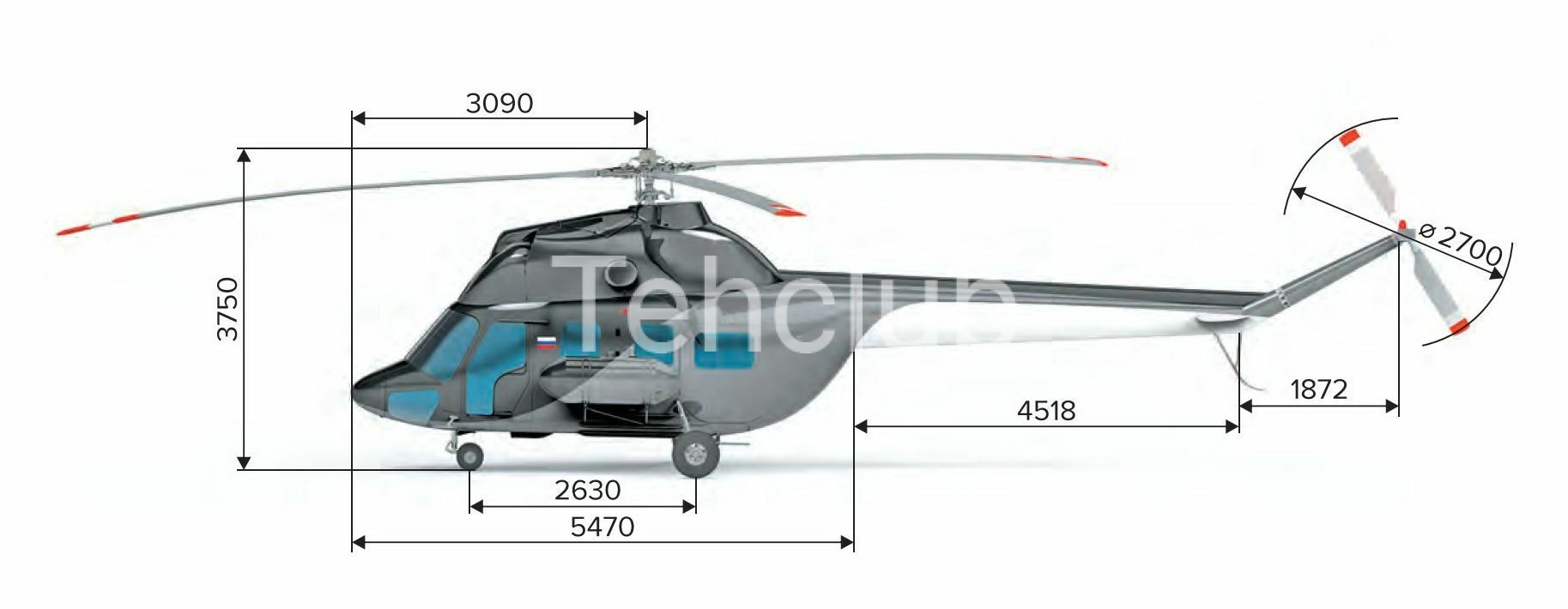

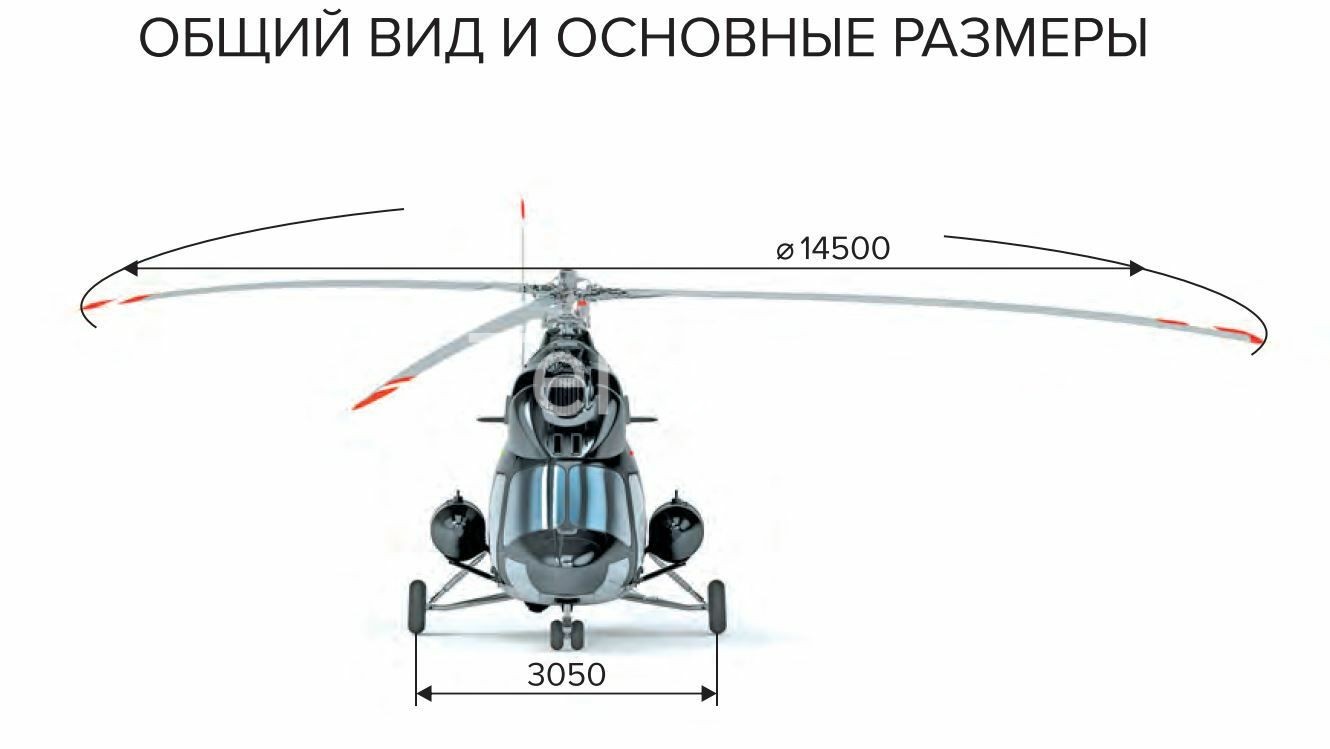

Dimensions: | |
Helicopter length, m | |
- with rotating screws | 17,42 |
- without blades | 11,94 |
Helicopter width without blades, m | 3,25 |
Helicopter height without tail rotor, m | 3,75 |
Distance from the ground to the bottom point of the fuselage (clearance) at normal take-off weight, m | 0,4 |
Chassis track, m | 3,05 |
Chassis base, m | 2,63 |
Main rotor diameter, m | 14,5 |
Number of rotor blades | 3 |
Tail rotor diameter, m | 2,7 |
Number of tail rotor blades | 2 |

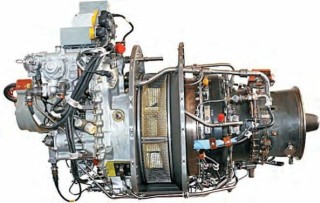

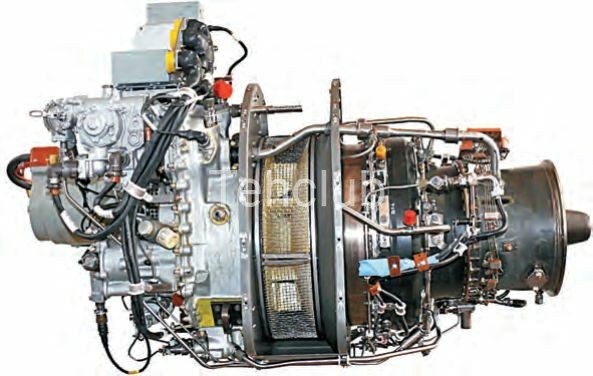

Technical characteristics of the new generation engine
30-minute mode power with one engine not running: | |
Power, hp | 430 |
Supported up to tn, C | +40 |
Takeoff mode: | |
Power, hp | 430 |
Supported up to tn, C | +25 |
Specific fuel consumption, kg/hp. h. | 0,284 |
Maximum cruise: | |
Power, hp | 300 |
Supported up to tn, C | +25 |
Specific fuel consumption, kg/hp. h. | 0,323 |
Dry weight, kg | 115 |
- low specific fuel consumption
- high reliability
- high power
- simplicity and ease of maintenance
- high maintainability
- low specific gravity.
- State: New
- Documents: Sold with documents
