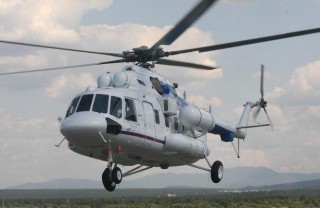

Helicopter Mi-8MTV-1, VIP

There is a Mi-8MTV-1 helicopter for sale, manufactured in 2006, with TVZ-117VM engines installed on it, ser. 02.

SPECIFICATION OF MI-8MTV1 HELICOPTER AIRCRAFT

BASIC PARTS AND FEATURES

• Type of aircraft - Mi-8MTV-1
• Manufacturer - Kazan Helicopter Plant
• Date of manufacture - 2006
• 13-seat passenger interior in VIP configuration (salon).
• Civil aircraft registration certificate - dated 10.2013
• Certificate of Airworthiness - 10.2019 to 10.2021

General information about the Helicopter

Mezhrem. resource: 2000 hours. or 12 years old

2 external add. fuel tank: 915L x2

Max. refueling: 4400l

Power plant: TV3-117VM ser. 2

Engines: left, right.

Release date: 2003

Mezhrem. resource: 1500 hours or 10 years

Main gearbox: VR-14

Release date: 2005

Mezhrem. resource: 2000 hour or 10 years

APU: SAFIR 5K / GMI

Serial number: 108

Release date: 2005

Mezhrem. resource: 750 hours or 2000 times. or 10 years

Radio communication equipment:

VHF radio station - Orlan-85ST (two sets)

Radio station KV - Nucleus 1A1

RTS navigation and landing:

Radiocompass - ARK-15M

Aircraft responder - SO-70

Equipment - DISS-15

Radio altimeter - A-037

Satellite navigation: (GPS) - KLN-90B, GLONAS TSS-12

Flight and navigation equipment:

Heading system - GMK-1A

Navigation-planning device - PNP-72-15

Radio equipment for short-range navigation - KURS-MP-70-18

TTA Ground Proximity Warning System

Two-pointer altimeter - VD-10VK

Electromechanical altimeter (foot meter) - VEM-72

Speed ​​indicator - US-450K

Diaphragm variometer - VAR-30MK

Weather radar - 8А813Ц ser. 2

Artificial horizon - AGB-3K (three sets)

Autopilot - AP-34b-2s

Collection and registration of flight information:

Onboard tape recorder - P-503B

Onboard voice communication equipment - RI-65B

Onboard flight mode registration system - BUR-1-2

Emergency and rescue equipment:

Emergency radio beacon - ARM-406P

Emergency radio station - R-855A1-01

Six emergency exits.

Fire extinguisher - 1-4-4 (2 pcs.)

Emergency Ax (2 pcs.)

On-board medical kit (2 pcs.)

Inviolable Emergency Reserve (NAP)

Passenger cabin description

13-seat passenger interior in VIP configuration (salon).

Lobby: reclining flight attendant seat on the port side and flight attendant work area with audio / video system and coffee maker on the right side. The lobby and the first section of the salon are separated by a partition with a removable soft curtain.

The first section of the saloon: On the port side there is a leather 3-seater folding sofa. On the starboard side opposite the sofa there is a stationary table and two folding leather chairs at the table opposite each other (club seating).

The first and second sections of the cabin are separated by a decorative combined plexiglass and wood partition.

The second section of the cabin: On the port and starboard side, symmetrically on a stationary table with folding sides and four leather chairs at each table opposite each other (conference seating)

Behind the second section is a partition with a door and behind it a dressing room on the port side and a wardrobe on the starboard side. In the rear part of the passenger compartment on the starboard side there is a luggage compartment of 0.8 cubic meters. A landline satellite phone is located in the first section on the starboard side of the flight by the seat of the main passenger.

CD-DVD audio / video system with portable universal control panel and stationary consoles next to each seat, five 19 'monitors, two under the ceiling in each section and + one on the lobby partition on the right side of the flight.

Design and installation of the cabin were made by Aerotaxi Service.

The helicopter is equipped with two US-made AE-817-110-1 air conditioners.

• State: Used
