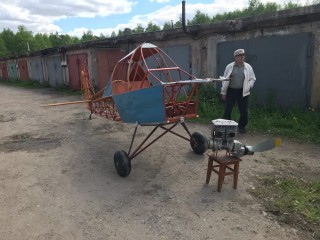

Homemade small plane
Vendor code: 28729 24 June 4396 13
Length-5.8 m
Wing R-9.3 m chord is 1.3 m, PL 12m2
pyramidal Chassis wheel 400х150мм

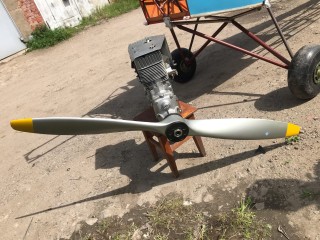

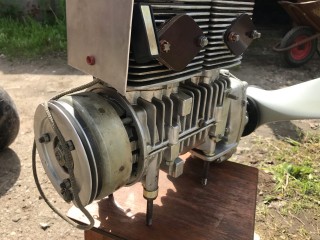

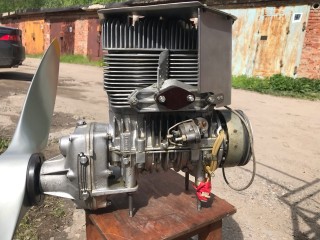

the Motor on the basis of the RMZ-640 28л.with. with gear
Screw f-1450mm step 0.9 m draft at the drain 110kg
the weight of the aircraft PR-180kg
Duhlata dense layout can control 2 of the pilot.

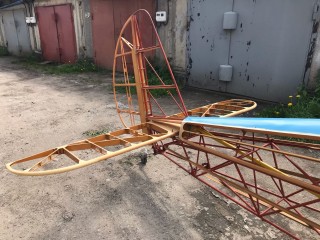

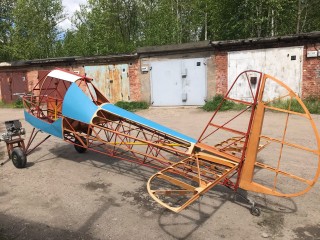

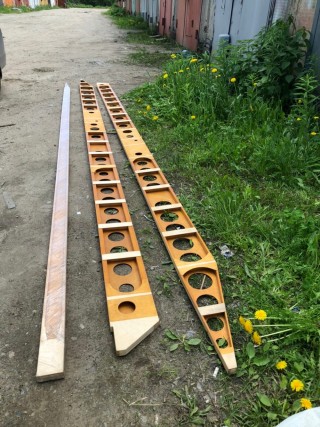

the Cabin is glazed. The door on the left one. Plumage of the wing is of wooden wall-1 mm steel-20A.The fuselage is welded from pipe f-16-14-12m argon, boar pipe f 30х2пм it is attached to the console, without center section. Chassis pyramidal 400х150пм wheel, tail spring with a steerable wheel.
controls: rudder cable. Else hard rods on the servo horns with bearings. Covered the whole with fabric and plywood
- State: Used
