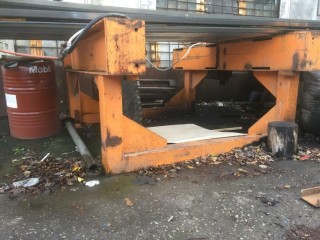

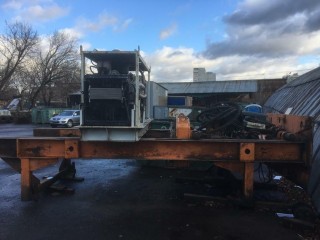

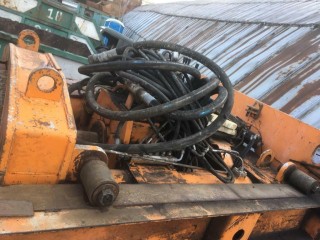

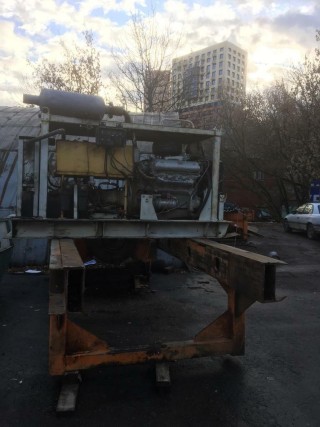

Horizontal drilling rig UGB6-02
Vendor code: 92911 11 July 71 0
Horizontal drilling rig UGB6-02
Specifications:
|
Maximum well diameter, mm |
1400 |
|
|
Maximum well length, m |
120 |
|
|
Forward stroke force, tf |
200 |
|
|
Rotation speed, rpm |
0 ÷ 60 |
|
|
Torque, tf/m |
5 |
|
|
The length of the embedded casing pipe, mm |
min |
3000 |
|
Max |
12000 |
|
|
Actuator |
Diesel, hydraulic |
|
|
Drive power, kW |
132 |
|
|
Installation weight, kg |
4500 |
|
|
Soil cleaning |
screw conveyor |
|
|
Overall dimensions, L x W x H, mm |
5600 x 2100 x 950 |
|
- State: Used
- Documents: Sold with documents
