LECHNER LE80 mini-excavator
Vendor code: 78319 15 January 318 7

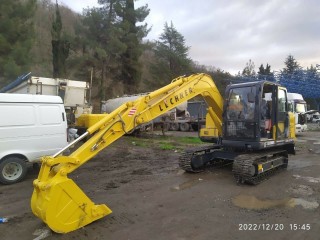

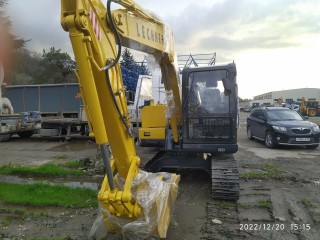

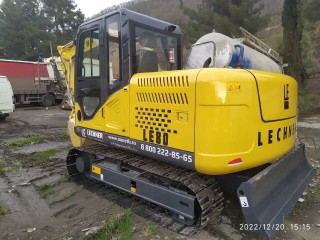

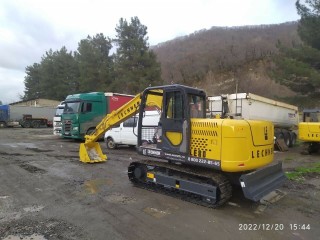

LECHNER LE80 caterpillar mini-excavator
In stock 2 units.
New cars, without developing. The price of VAT is possible for leasing.

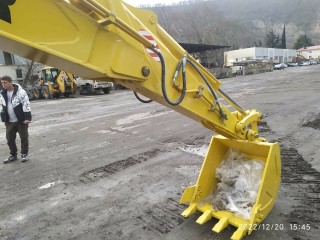

The mass is 8200 kg, the bucket volume is 0.32 m3, the additional hydrolympicial on the arrow.
Small dimensions, high power, reliable components, the ability to work in constrained conditions, excellent performance!
Technical specifications:
The hydraulic system is built on the components of Inline Hydraulic GmbH (Germany).

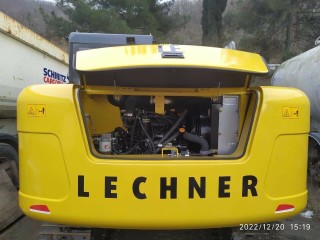

Diesel engine - Yanmar 4TNV98 (Japan),
Engine power (kW / hp) - 54.3 / 77
The volume of the fuel tank (l) - 130
Movement speed (km/h) - 5.2/3.2
Rotation speed (rpm) - 11.5
Overcoming climb (%) - 70
Cutting effort of bucket, ISO (KN) - 58
Hand length (mm) - 1 650
Arrow length (mm) - 3 900
Pressure on the soil (KPA) - 27.5
Oil tank volume (l) - 86

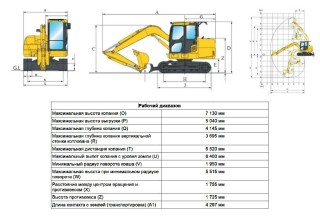

The dimensions of the excavator:
A - total length (mm) - 6 485
B - total width (mm) - 2 304
C - arrow height in folded condition - 2,500
D - height in the cab (mm) - 2 750
E - clearance of counterweight (mm) - 760
F - minimum road clearance (mm) - 380
G - radius of the rear (mm) removal - 1 755
H - the length of the contact of caterpillars with the ground (mm) - 2 215
J - caterpillar length (mm) - 2 830
K - track width (mm) - 1 800
L is the width of the chassis (mm) - 2 250
M - the width of the track (mm) - 450
N is the width of the rotary superstructure (mm) - 2 250 mm
Steel caterpillars
Operational mass (kg) - 8200
- State: New
- Payment: Any form of payment
- Documents: Sold with documents
