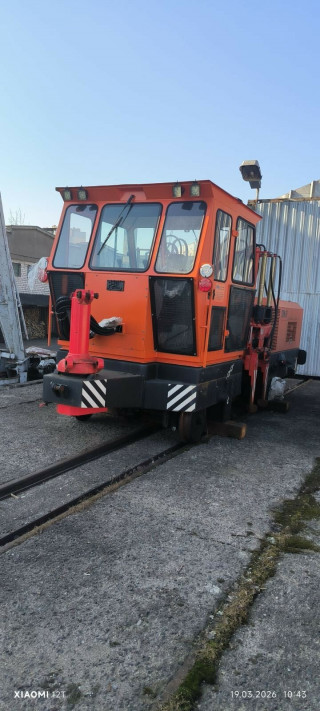

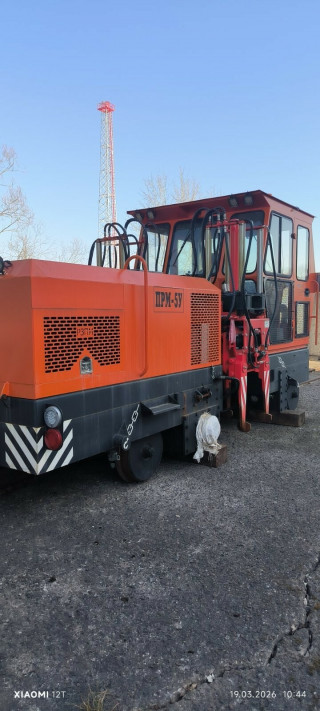

Machine PRM-5U

Universal track repair machine PRM-5U is on sale

PRM-5U is designed for laying, replacing sleepers, straightening railway tracks, compacting ballast, as well as performing additional operations on the construction and routine maintenance of railway tracks. Operations performed by the PRM-5U machine: laying, changing sleepers, track construction and repair, continuous tamping, lifting and straightening, adding ballast with a bucket and grab, mowing vegetation, clearing the track of snow and ballast, powering a variety of railway track power tools.

Worked at the site - 170 m/hour.

Technical characteristics of the PRM-5U machine:

• Year of release: 2024;
• Overall dimensions, mm: 7100x2750x3200;
• Curb weight, t: 11;
• Diameter of running wheels, mm: 500;
• Track width, mm: 1520;
• Type of rails the machine works with: R 43, R 59, R 65;
• Engine: D-245;
• Single sleeper replacement/hour: 45;
• Productivity for continuous tamping of sleepers/hour: 200;
• Productivity when lifting the track, m/hour: 500;
• Productivity during track straightening, m/hour: 600;
• Maximum amount of path shift during straightening, mm: 360;
• Maximum amount of track rise, mm: 400;
• Maximum surmountable slope, degrees: 60;
• Transport speed, km/h: 50;
• Maximum radius of passing curves, m: 60;
• Generator for powering power tools, welding machines, kW: at least 8.

Grab

• Grab volume, m/cube 0.15;
• The drive of the working bodies is hydraulic.

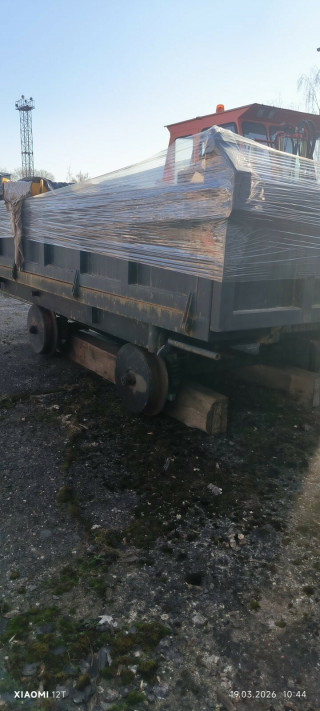

Trailed trolley PT-3

• The trailed trolley is a tipper, and tipping occurs on three sides of the railway track by reinstalling the fingers;
• The presence of a braking system on the platform wheelsets. working in conjunction with the brake system of the machine. provides additional safety during operation, unlike analogues that do not have a braking system;
• Load capacity kN (t): 50 (5);
• Body tipping angle, degrees: 50.
• Three-way tilting;
• Number of brake axles, pcs.: 2;
• Pressure in the hydraulic system, MPa: 12;
• Overall dimensions: 3700x2200x1190 mm;
• Weight: 2.5 t.

Bucket

• Bucket volume. m/cube: 0.15;
• Drive of working bodies: hydraulic.

• State: Used
• Payment: Wire transfer
• Documents: Sold with documents
