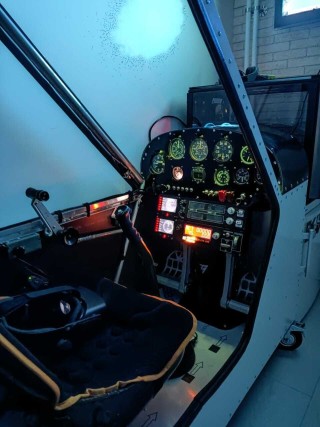

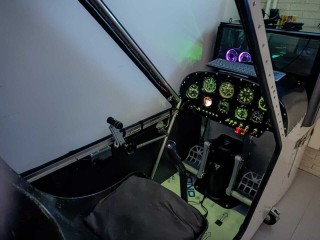

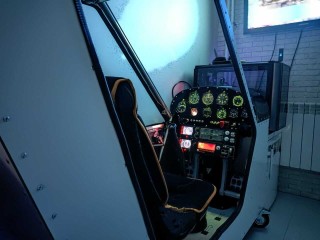

Layout of the aircraft cabin "PIPER SUPER CUB"

Layout of the aircraft cabin "PIPER SUPER CUB"

All geometric dimensions of the cabin correspond to the real prototype, the controls completely copy the original, and are activated:

• RUS (aircraft control stick) via roll-pitch channels;
• pedals (rudder);
• brakes (left-right pedal-pressure);
• elevator trimmer (steering wheel);
• flap release/retract lever;
• the engine control lever is from a real plane, as well as the parking brake and mixture quality lever, and instruments from a real plane are installed on the dashboard.

The instrument panel is backlit, and the quartz aviation clock on the instrument panel is fully operational.

The cockpit has a real airplane pilot's seat with height adjustment. The cabin has a chair vibration system controlled by software to simulate tactile sensations (vibration pad with reinforced motors).

The cabin is equipped with a WMR “Windows Mixed Reality” visualization system (virtual reality helmet) HP Reverb G-2 of the second revision.

A modernized and reinforced feedback system “MSFFB-2 Side winder” and a pedal unit “Trust masers” are used as the control gear.

The cabin is also equipped with a radio panel and a multifunctional display from Logitech.

This cockpit is compatible with all existing aviation simulators and is connected to the system unit with two USB and Display Port cables.

The cabin is located for ease of movement on a three-post wheeled chassis with braking.

• State: New
