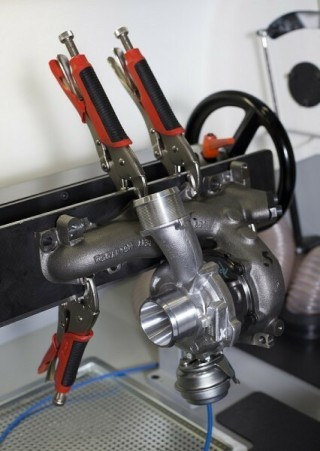

Turbo Test CIMAT stand
Vendor code: 124353 13 June 228 0
Calibration stands of the Turbo Test family designed for high-precision dynamic geometry adjustment and final calibration of the turbine as a whole. TurboTest serves to regulate the mechanism of said turbocharger geometry using both electronic and pneumatic power.
Production time: from 1 to 3 months.
Delivery time: 3-4 weeks.
Dimensions of DShV: 2070 x 1200 x 1850 mm.
Weight: 800 kg.
Features of TURBO TEST PRO:
Static and dynamic measurement of turbine section mass flow with confirmation of rotor speed. Diagnostics and programming of electric drives of cars and trucks.
Description:
First-class Swiss industrial flow meters, turbocharger orientation as in an automobile, turbine air mass flow measurement statically and dynamically with rotor speed check, load pressure coefficient measurement at high rotation speed, compressor section volumetric flow measurement and REA programming ensure proper calibration of Wastegate turbochargers, VNT turbochargers, as well as the most modern turbochargers with an electric actuator, which require highly precise settings.
Benefits of dynamic calibration of VNT turbochargers:

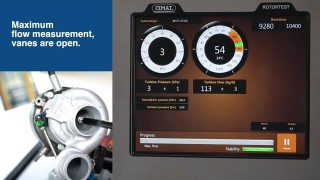

• Dynamic calibration (rotating rotor) of variable geometry depending on air flow - calibration of minimum, average and maximum flow.
• Compressor section performance test.
• Checking the tightness of the turbocharger.
• REA Hella, Siemens testing and reprogramming.
• Checking the pneumatic and vacuum drive.
• Position sensor test.
• Checking the turbocharger boost pressure coefficient. Spin test in real life.
• Measurement of turbocharger rotation speed.
• Air loss test in turbocharger.
• BorgWarner Turbo Systems approved.
• Large free access to the database of turbocharger parameters.
- State: New
- Payment: Wire transfer
- Documents: Sold with documents
