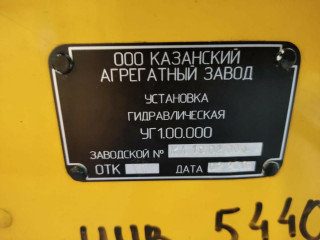

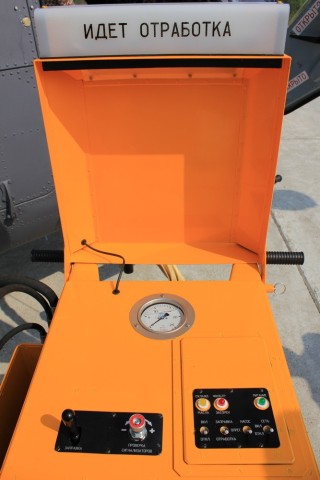

Hydraulic installation UG1.00.000
Vendor code: 130190 30 January 52 0
Hydraulic installation UG1.00.000

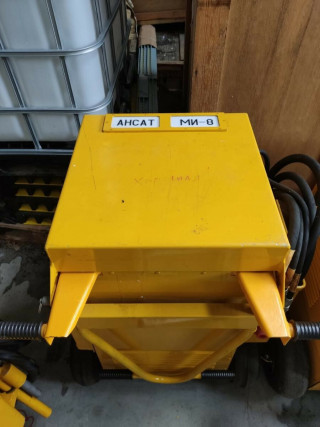

A means for ground handling of Ansat and Mi helicopters. Several installations available.
Specifications:
- Working fluid AMG-10 GOST 6794-75
- Supply voltage DC 27 V
- Rated / starting current, no more than 150 / 210 A
- Pumping station NS15R
- Exhaust pressure at steady flow for an ANSAT helicopter is not less than 5 l/min MPa (kgf/cm2) 16.5 (165)
- Pressure test for ANSAT helicopter MPa (kgf/cm2) 21…23 (210…230)
- Exhaust pressure at steady flow for the Mi-8MTV-1 helicopter is not less than 5 l/min MPa (kgf/cm2) 6.5+0.8 (65+8)
- Liquid filtration fineness µm 6
- Starting temperature of the temperature regulator ºС 40±5
- Full opening temperature of the temperature regulator ºС 50±5
- Fan start temperature ºС 60
- Fan switch-off temperature ºС 48
- Continuous operation time, no more than 4 hours
- Ambient temperature ºС from minus 40 to plus 50
- Safety valve setting pressure: - KP – 1 - KP – 2 - KP – 3 (adjustable from the remote control, from operating pressure to, no more than) MPa (kgf/cm2) 8.5±0.5 (85±5) 18.5±0.5 (185±5) 5.5±0.5 (55±5)
- Overall dimensions (length, width, height), no more: - in transport position - in working position mm 1270 x 760 x 1000 680 x 760 x 1400
- Weight, no more than kg 130
- State: Used
- Payment: Any form of payment
- Documents: Sold with documents
