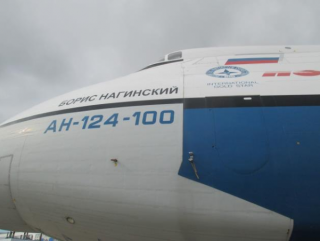

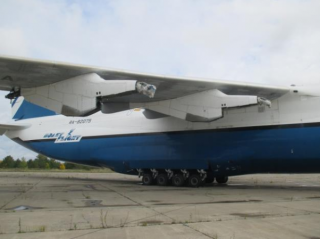

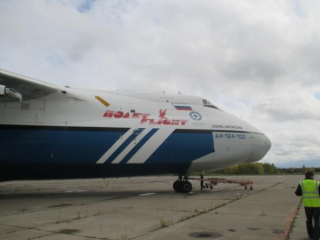

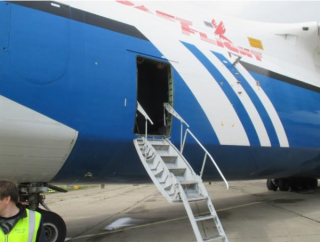

Antonov An-124-100

Sold by the An-124-100. Price reduced.

Crew: 8 (commander, assistant commander, Navigator, senior flight engineer, flight engineer

at the AO, radio operator, 2 operator loading and unloading)

• passenger Capacity: 7 (in the cockpit, relief crew) + 21 (in the cabin maintenance

staff)

• Capacity: 120 000 kg

• Length: 69,1 m

• Wingspan: 73,3 m

• Height: of 21.08 m

• wing Area: 628 m2

• empty Weight: 400 kg 178

• Maximum takeoff weight: 392 000 kg

• Weight of fuel in internal tanks: 212 350 kg (max)

• Bulk impact: 58 %

• Powerplant: 4 × turbofan D-18T

• Deadlift: 4 × 229,85 kN (23430 kgf)

• Auxiliary powerplant: 2 × TBG TA-12

• the resource is Assigned: 50 000 flight hours; 10 000 typical flight; 50 years.

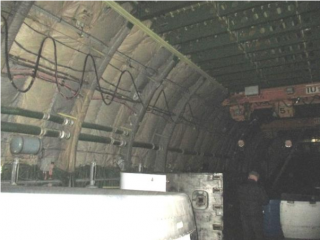

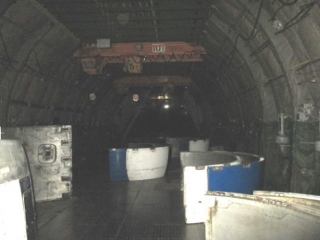

the dimensions of the cargo compartment

•Length: 36.5 m

•Width: 6.4 m

•Height: 4.4 m

•Amount of cargo space: 1050 m3

•Size of cargo hatches:

•front: 6.4 x 4.4 m

•back: 6.4 x 4.4 m

Flight characteristics

• Maximum speed: 865 km/h

• cruise speed: 800-850 km/h

• Practical range: 4800 km (with maximum load); 7500 km (with a load of 80,000 kg)

• service ceiling: 11 600 m

• wing Loading: 365 kg/m2

• power to weight ratio: 0,24

navigation equipment installed on Board:

1.Measuring complex high-speed parameters of IKVSP-1-7Фс dimension

height in feet and flight operations in airspace with reduced

minima vertical eshelonnaya feet (RVSM)

2. Warning system and collision avoidance TCAS-2000. Modified by

providing a standard surveillance (ELS)

3. Abris satellite navigation system

4.Early warning system the approach of land TAWS TTA-12 with indicator light

MFI letchkov TDS-56D

5.Instrument navigation and landing "KURS MP-70"

6. Aircraft range-finder SD-75

7.System automatic flight control ACS-3-400.

8.Automatic direction finder ark-22.

9.Radiometer A-034.

10.The system of short-range navigation A-312.

11.System long-range navigation A-723.

12.The Doppler meter ground speed ШО13В.

13.Inertial navigation system A-826 with the monoblocks HG2030AE21 (sins)

14.TNL2000 Approach satellite navigation system

15.Aircraft responder of so-72 (dual working modes of the ICAO "A" and "AC").

16.The management computing system UCS A-821.

17.Flight center A-825.

18.Radar IN 3А882-10 radar top review.

19.Radar-N 3А882-10 radar down view(the underlying surface).

20.Astronavigation system As-829.

• State: Used
