Line for the production of corrugated sheets S-8

Automatic line for the production of corrugated sheets S-8 is on sale

The equipment will allow you to set up your own production of a sought-after building material - corrugated sheets for fences, facades and roofing.

Key benefits:

• Full automation. Control is carried out from a programmable logic controller (PLC) - as in the photo. Setting parameters (length and number of sheets) occurs through a convenient touch interface. The line operates automatically, requiring minimal operator intervention.
• High accuracy. The control system (often based on Japanese OMRON or Delta components) provides cutting accuracy of up to ±1 mm per 3-meter product. This guarantees a perfect match in size of the finished sheets.
• Versatility. The machine works with rolled steel with a thickness of 0.3 to 0.7 mm and a width of 1250 mm, including polymer-coated material.
• Performance. The rolling speed ranges from 12 to 15 m/min, which allows the production of up to 360 linear meters of products per hour.

Specifications:

• Produced profile: C-8 (useful sheet width 1150 mm).
• Metal thickness: 0.3 – 0.7 mm.
• Rolling speed: 10–15 m.p./min.
• Number of molding stands: 13–15 pcs.
• Cutting accuracy: ± 1-2 mm.
• Installed power: ~ 9.25 – 9.5 kW.
• Voltage: 380 V, 50 Hz.
• Control system: PLC (CNC) with touch screen.
• Dimensions (LxWxH): ~ 7.0 x 1.8 x 1.5 m (depending on configuration).
• Weight: ~ 4000 – 6000 kg.

Line equipment:

• Roll unwinder (cantilever or two-support) with tension mechanism.

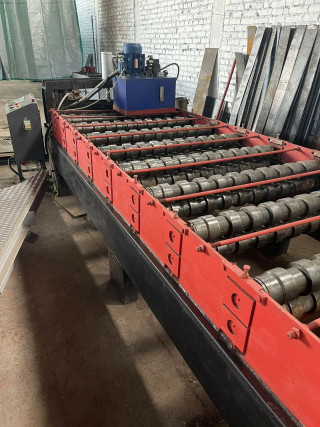

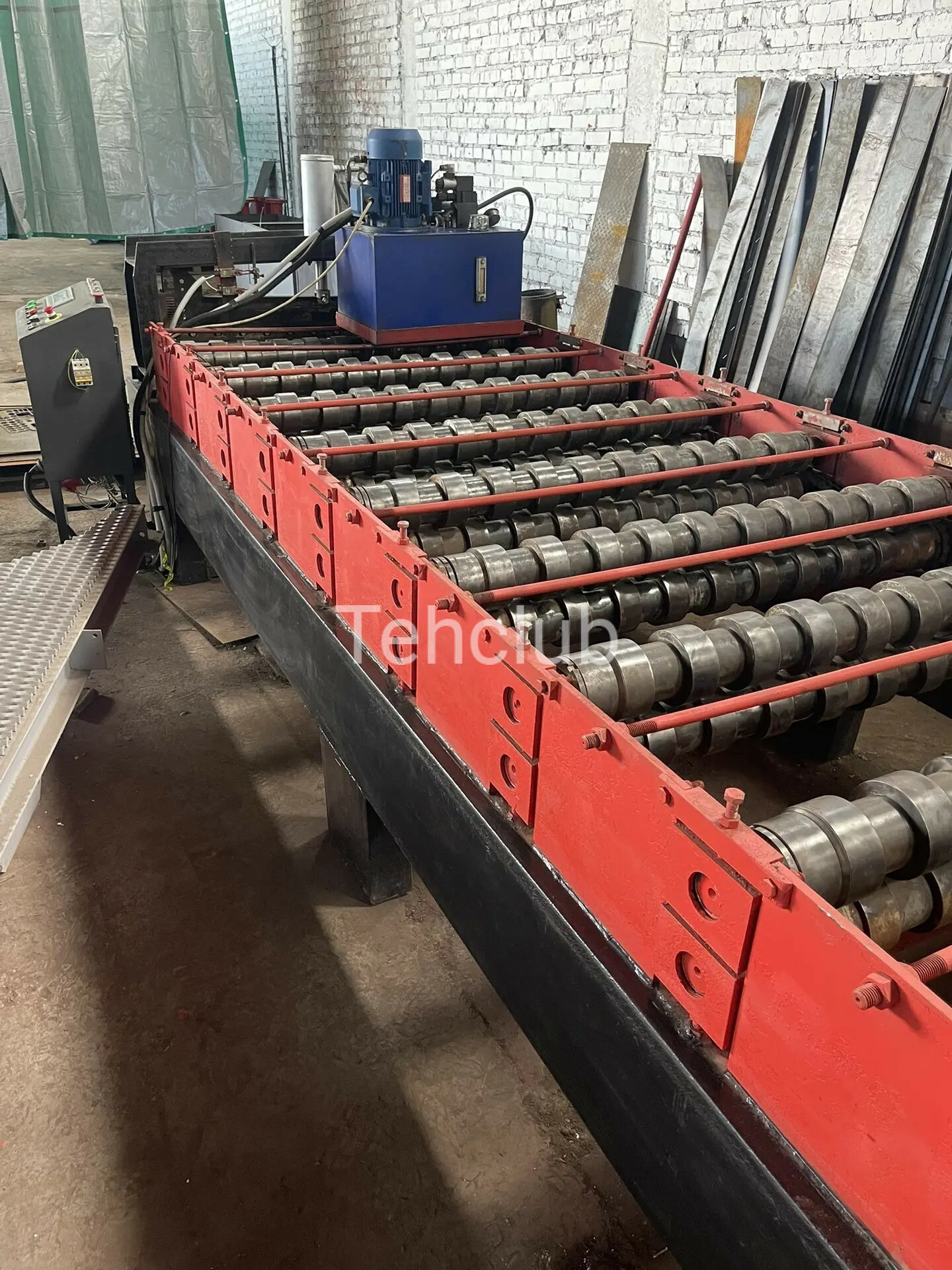

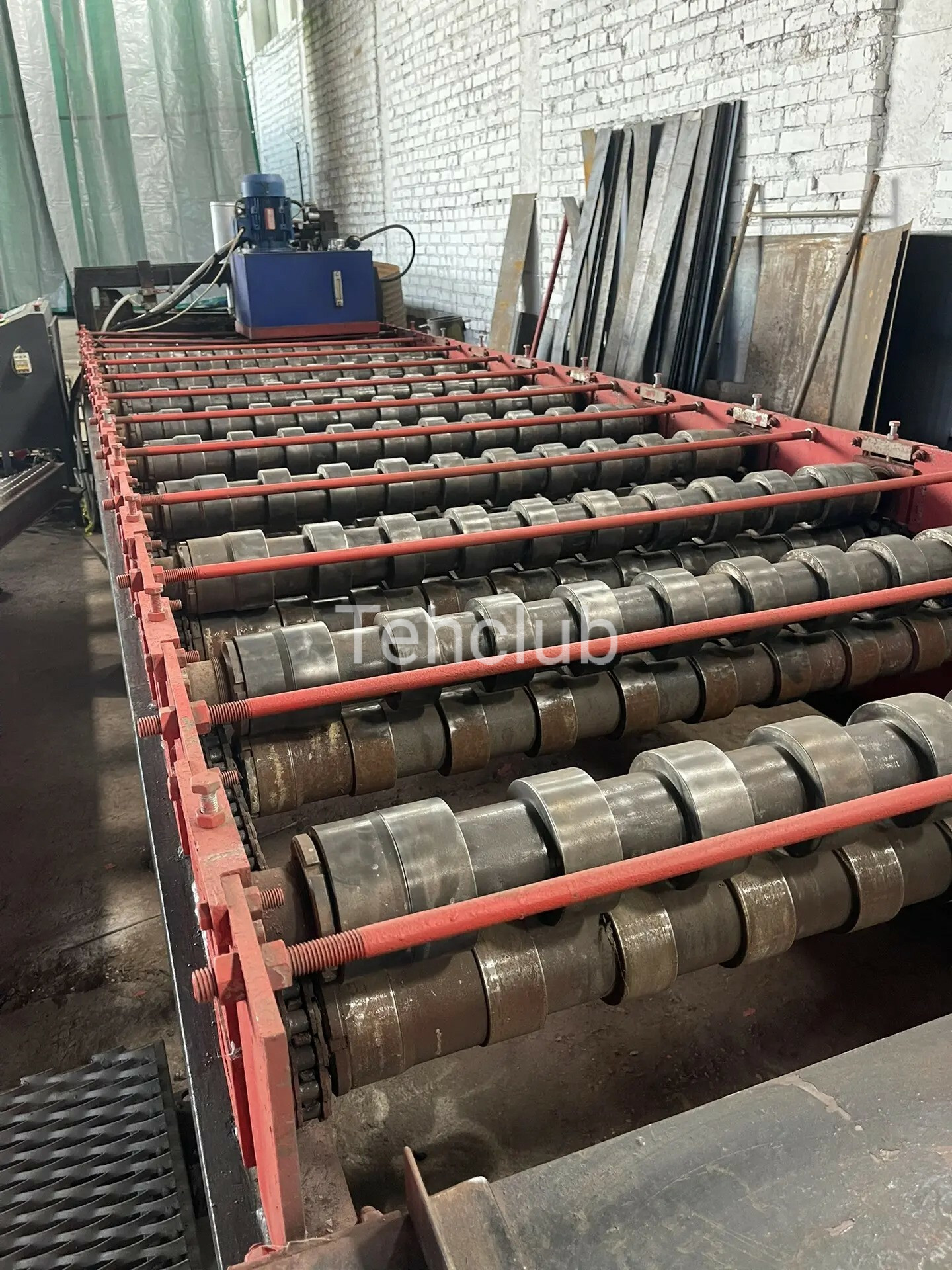

• Roll forming mill with 13-15 working stands, ensuring precise profile geometry.

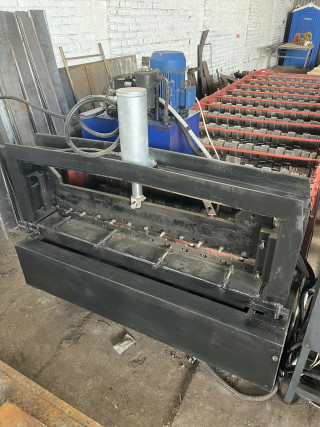

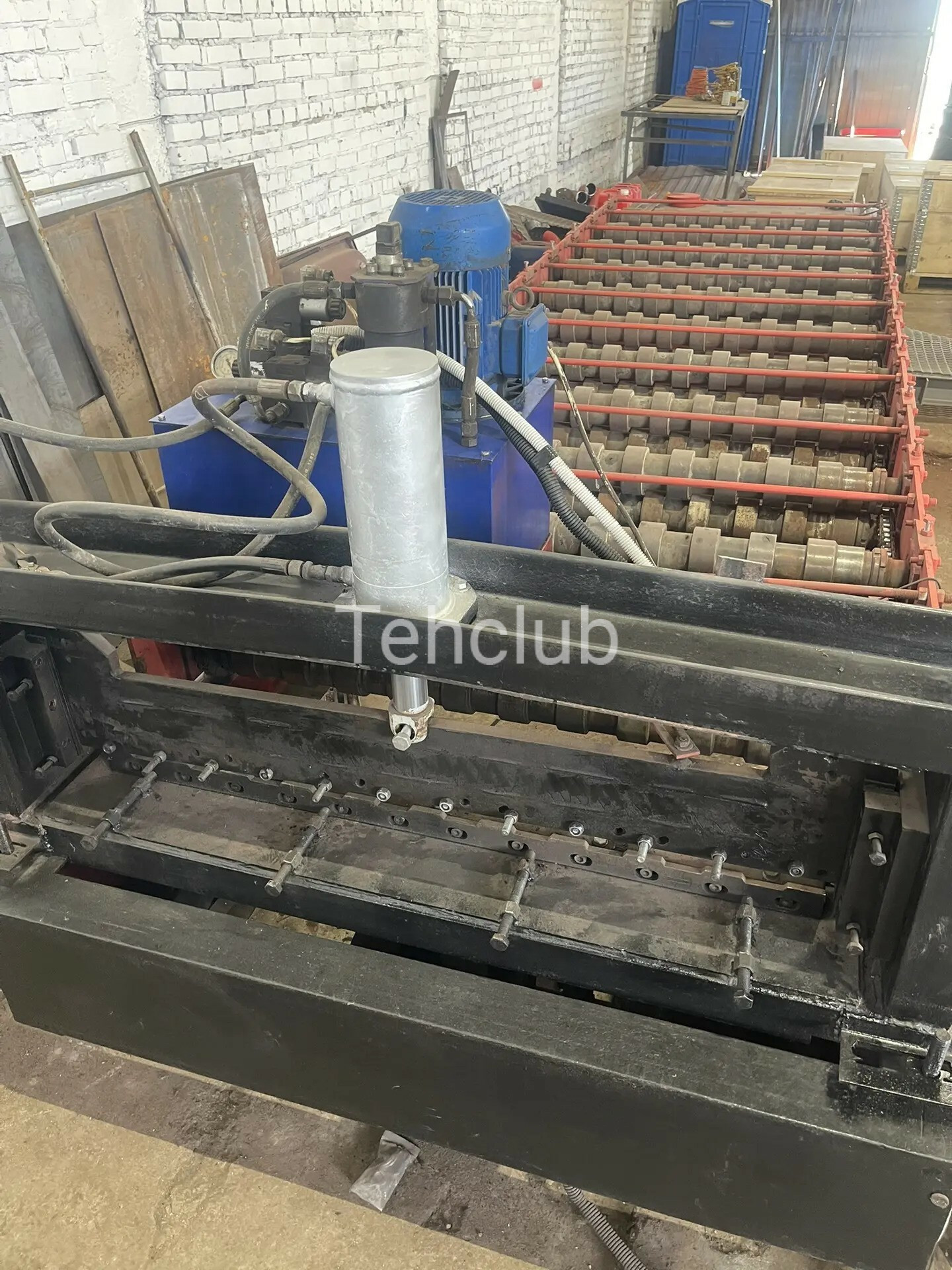

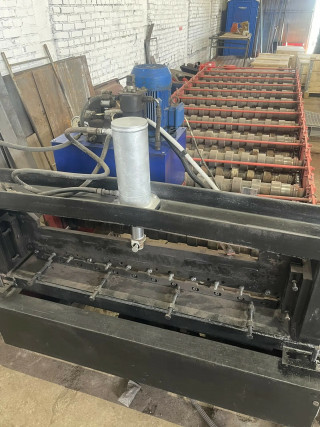

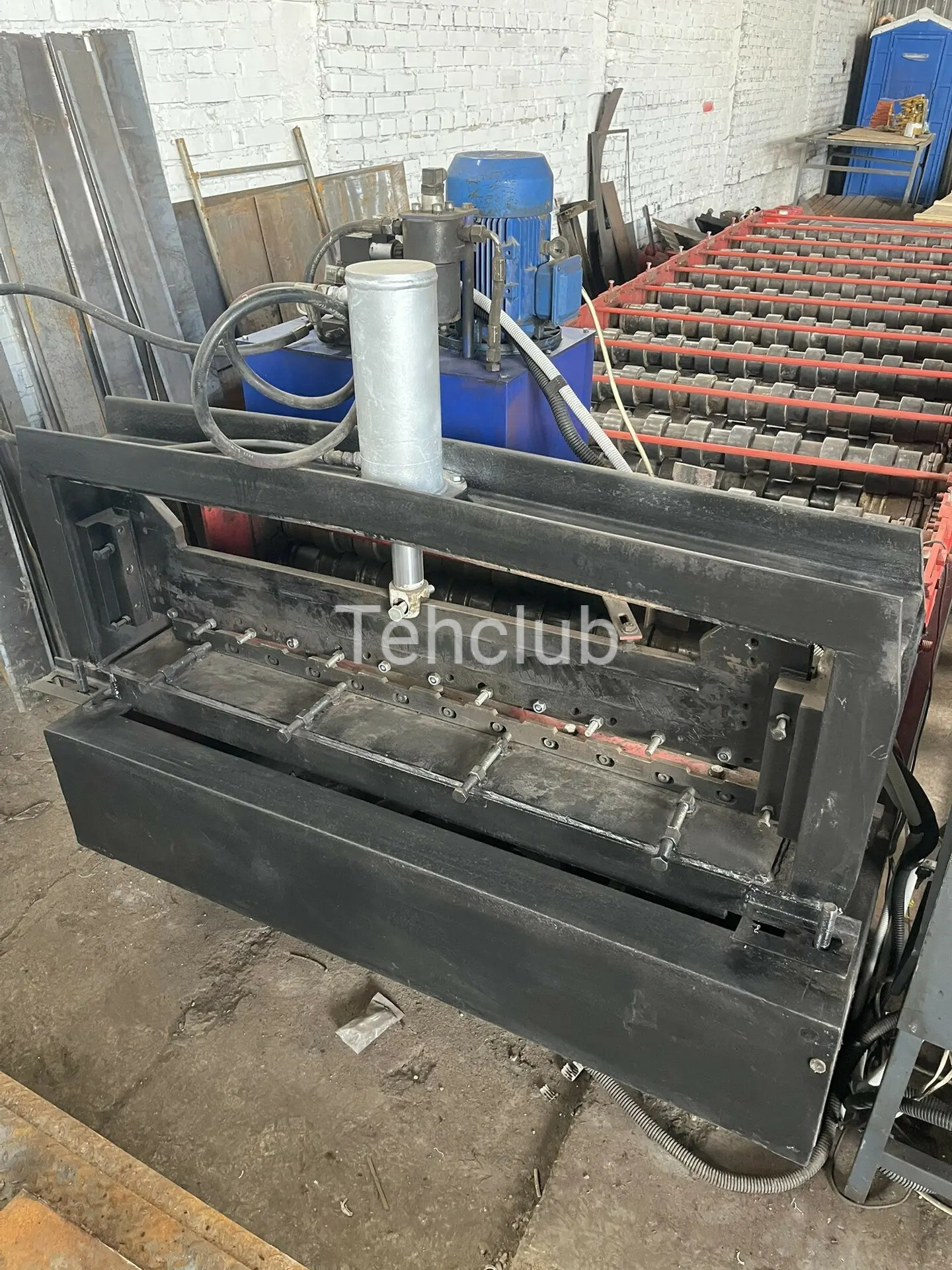

• Hydraulic guillotine shears for clean and even cutting of finished sheets.
• Receiving table (roller table) for stacking finished products.

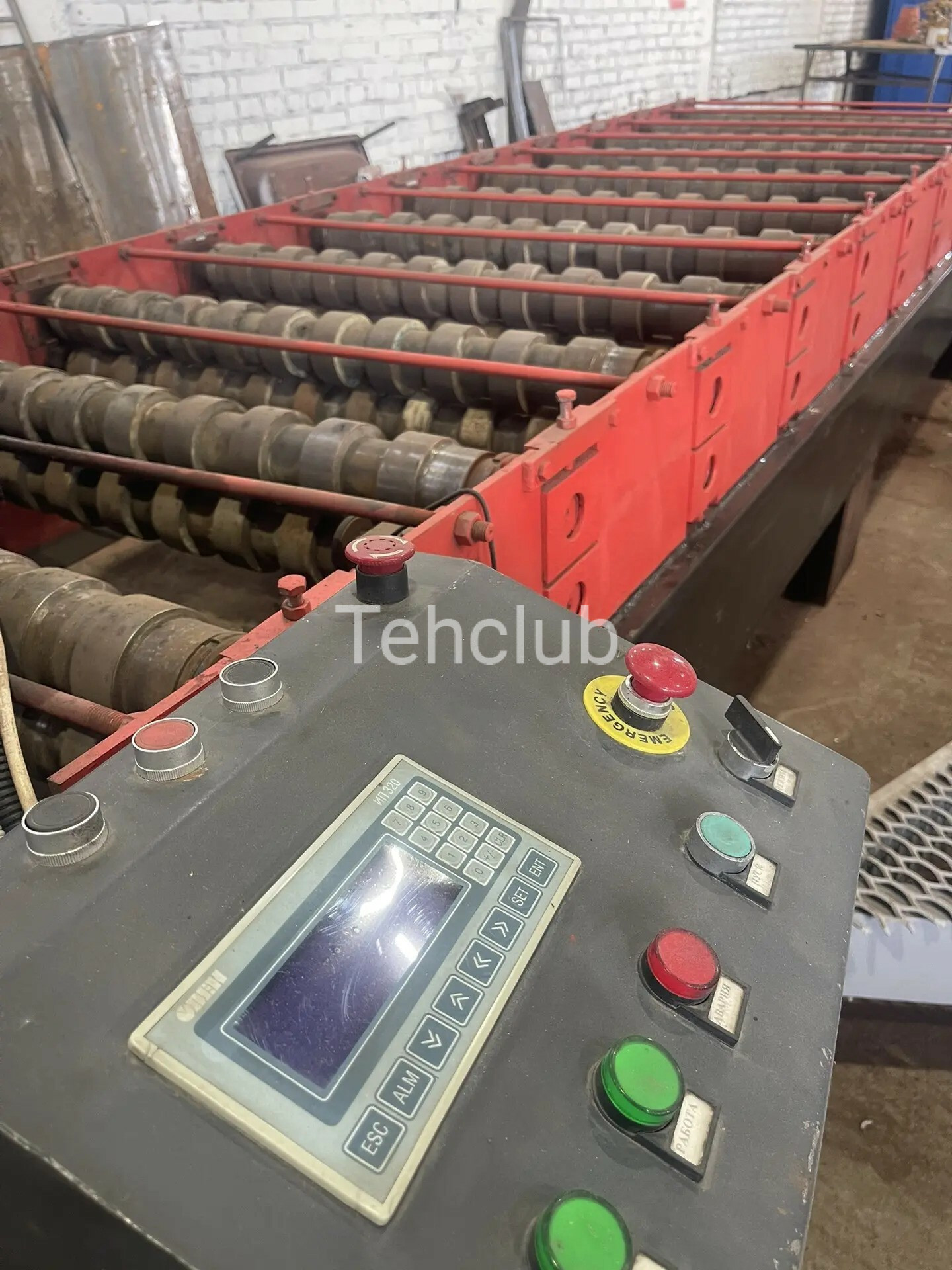

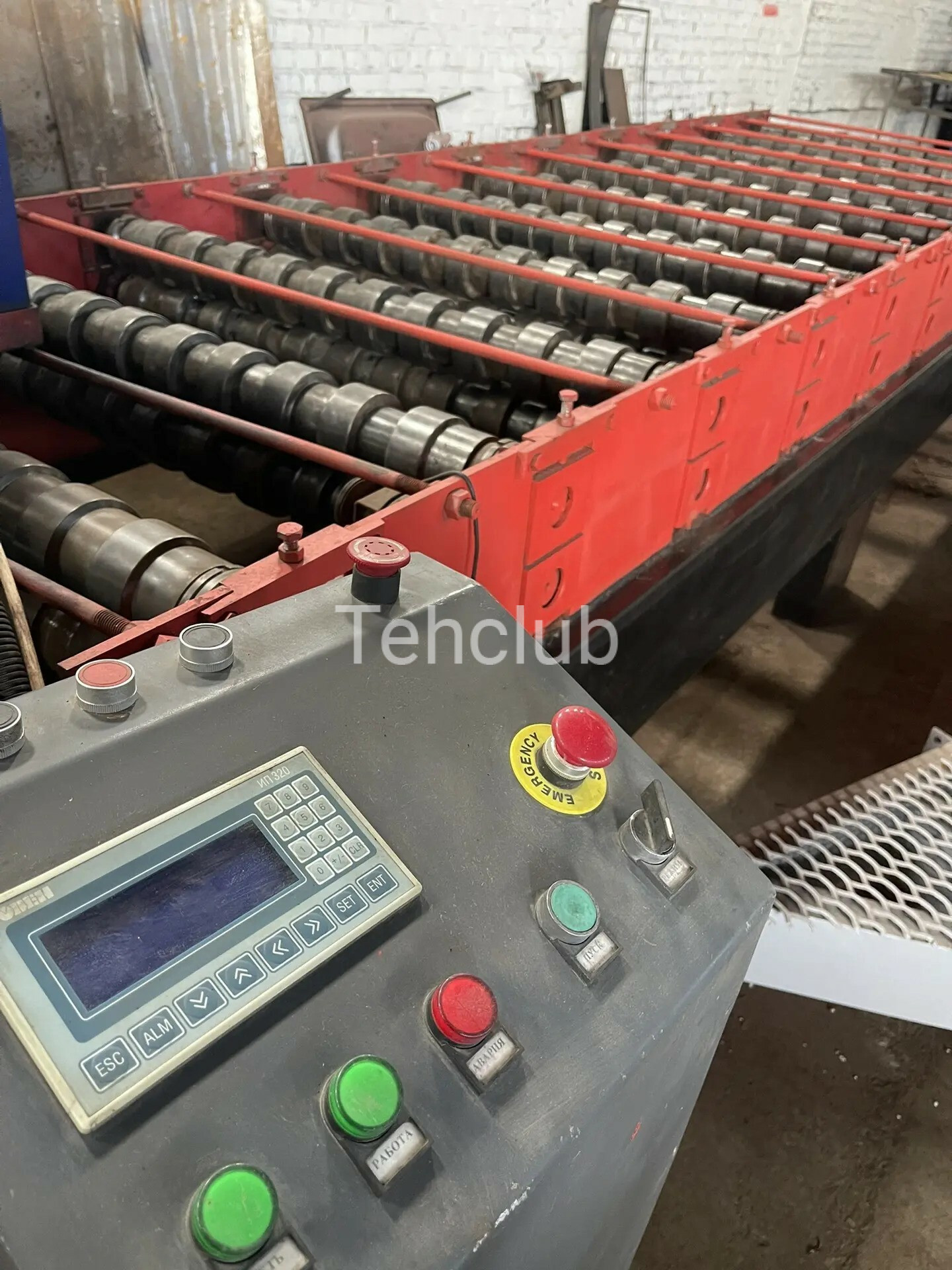

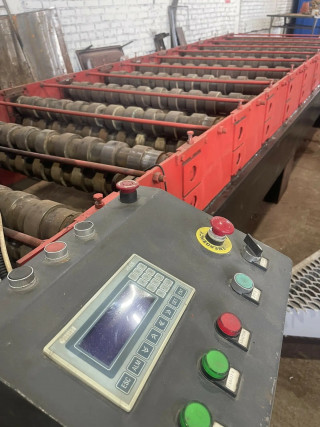

• Automatic control system (PLC) with touch panel (shown in the photo).

A great option for starting or expanding your business. The equipment is in working order.

• State: Used
• Payment: Any form of payment
• Documents: Sold without documents (lost)
