Wingsuit wind tunnel

For sale is a unique inclined closed wind tunnel for electrically powered wingsuits.

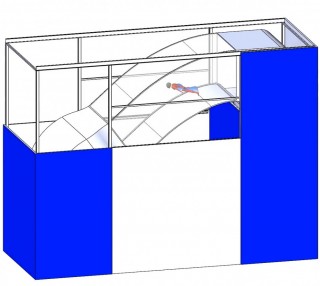

The installation is a recirculating wind tunnel with a rectangular (in cross-section) flight chamber and a variable angle of inclination relative to the horizon, which is intended for entertaining and sporting flights of a person in a wingsuit suit, as well as training flying skiers. The body structure is metal, partly sandwich. Installed in a metal supporting frame. Air exchange cooling system.

Main technical characteristics:

• The cross-sectional area of ​​the flight chamber channel is 12 m2.
• Flow rate max. 44 m/s

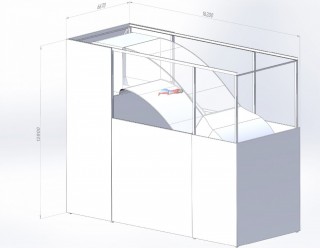

• Dimensions (LxWxH) 16.2x6.7x12.8
• Weight about 50 tons.
• Power max. 500 kW (without additional consumers)

Contents of delivery:

• Air duct housing
• Support frame
• Glazed flight chamber
• Fan assemblies
• Frequency converters
• Digital control system (incl. Control panel with controller, PC + software, sensors, wiring)
• Soft flooring of the flight chamber
• Hanging system

The designated service life is at least 10 years.

Production time 5 months. Payment procedure: 70% prepayment, 30% at the time of shipment. The cost of commissioning work is 2% of the cost of the equipment.

• The design of aerodynamic simulators is protected by Russian Federation patents.
• Technical parameters of aerodynamic simulators may be changed by the manufacturer!

• State: New
