Wind tunnel Ø 3.2 m.
Vendor code: 28728 2437 45
This wind tunnel is designed to perform sport and entertainment flights in the mode of simulating the free fall of a person in the air.
It is optimal for working with all groups of visitors, both with children and adults who find themselves in a wind tunnel for the first time, and with professional athletes and free fly enthusiasts who will be comfortable conducting training and competitions in almost any discipline, incl. 4 way RW.
Thanks to the excellent price-quality ratio, the Wind Tunnel Ø 3.2 m allows you to implement a business project of an aerodynamic complex with the shortest possible payback period.
Like smaller models, the Ø 3.2 m Wind Tunnel allows you to have the widest possible choice of potential locations for the complex due to moderate electrical connection power requirements (without a chiller up to 800 kW). The design of the glass with an entrance without a door and a high-capacity airlock vestibule allow for the fastest possible rotation of visitors, which significantly improves the economic performance of the wind tunnel. The Safe Landing System ensures safety when falling even from the highest point of the flight chamber. At the same time, the SBP provides easy access for replacing the mesh cables directly in the glass. Our latest development is exclusive - a noise reduction system in the wind tunnel channel to increase acoustic comfort in the flight chamber.
This wind tunnel is intended for installation inside a building. At the same time, its supporting frame can be covered with sandwich panels or glass.
Performance indicators:
- Average flight time per month is about 150 hours
- The average level of profitability of the complex based on the Aerotube Ø 3.2 m is about 40%
- Average payback period – 3-5 years
* The information is for reference and indicative only, since these parameters depend on the installation location and management of the complex.
Main Features

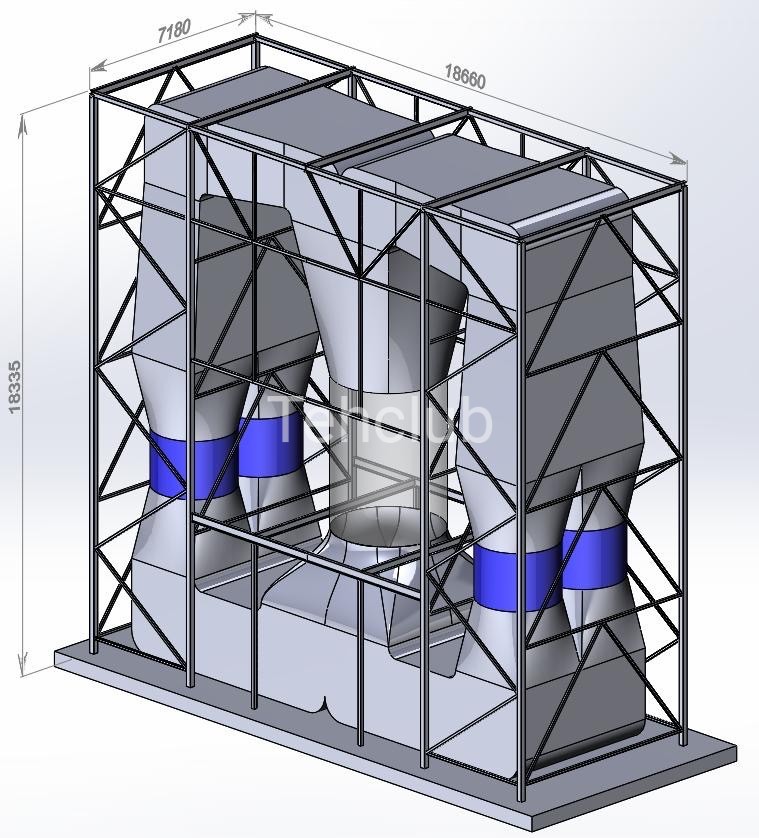

- Dimensions (L.W.H.) 18.7x7.2x18.4 m (External dimensions of the frame can be agreed upon and specified)

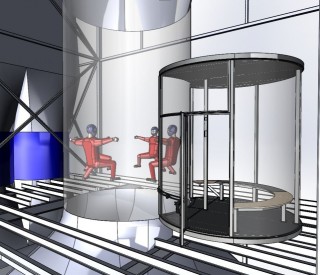

- Flight chamber: Glass – D 3.2 m, H 5 m; Total height 10 m
- Power max. 800 kW
- Fans D 2000 mm (4x200 kW)
- Flow rate max. up to 75 m/s
- Cooling:
- Air exchange (forced)
- Heat exchange system with external refrigeration unit (electric chiller with a capacity of 250 kW)
- The weight of the assembled structure is about 68 tons.
Scope of delivery
- Support frame
- Air ducts with rotary units and rotary straightening blades
- Main fans with motors 4 pcs.
- Cooling system (air exchange)
- Flight camera
- Airlock vestibule (capacity 10 people)
- Frequency converters 4x220 kW
- Digital wind tunnel control system
- Illumination of diffuser and confuser
- Safe Landing System
The price of the basic set is indicated on the website.
Options:
- Internal noise reduction system (increases acoustic comfort in the flight chamber) $11,000
- Heat exchange cooling system $20,000
- Chiller (250 kW) $100,000

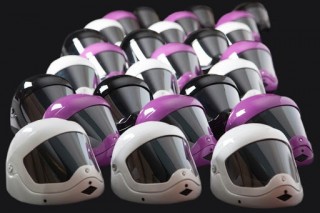

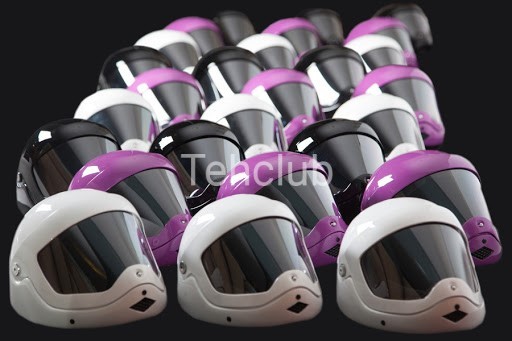

- Equipment (overalls, helmets) 20 sets $7,000
- Execution according to CE sert requirements. (including Siemens engines) $27,000
Delivery conditions, price, guarantee
- Price in $ at the exchange rate of the Central Bank of the Russian Federation. Prepayment 70% Final payment 30% (before shipment)
- Delivery terms – pick up
- The basic delivery set consists of 9 eurotrucks or 9 40 ft containers.
- Production time 5 months
- 12 month warranty
- Fan blade service life - at least 8000 hours
- The price of installation supervision and commissioning is 1% of the delivery cost.
What is required to start a project
- Good location
- Complex project
- Wind tunnel installation and building construction
- Power connection
- Recruitment and training of personnel. Minimum requirements: 1 manager, 2 administrators, 6 instructors
- Purchase of equipment (overalls, helmets, shoes) approximately 20 sets
- Miscellaneous (furniture, office equipment, bar equipment)
- State: Used
