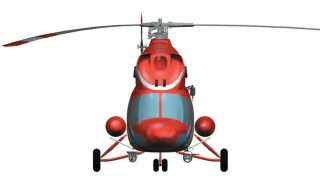

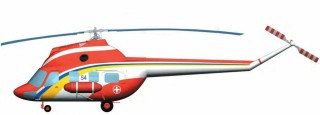

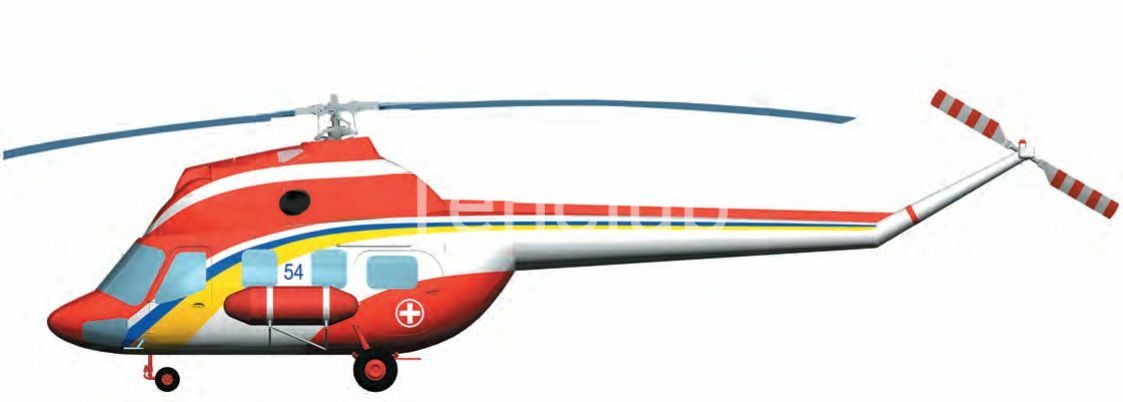

Search and rescue helicopter "Scout"
Vendor code: 72000 22 October 654 32

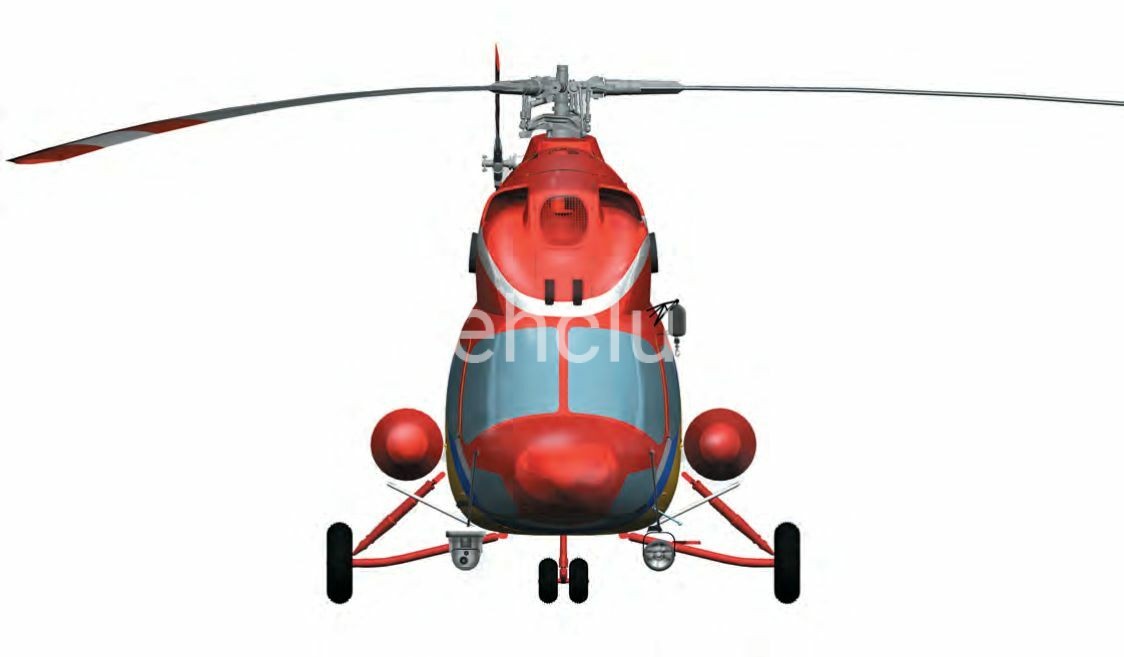

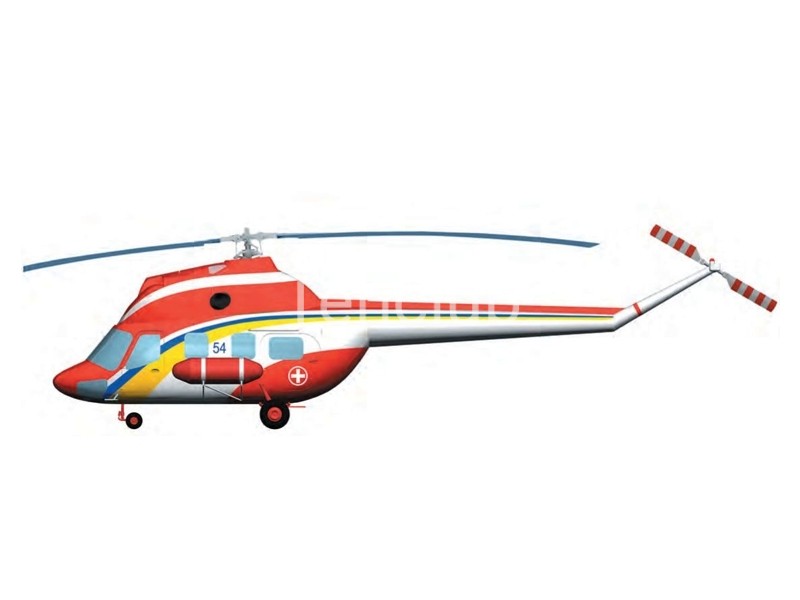

Light multi-purpose helicopter "Scout" with new generation engines, search and rescue version
Tasks:
- search for victims in emergency situations;
- delivery of a medical team to the scene of the incident;
- provision of emergency assistance;
- transportation of sick and injured people.
The helicopter can be equipped with emergency medical and specialized equipment, as well as search and rescue capabilities.

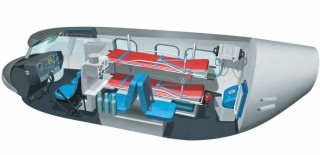

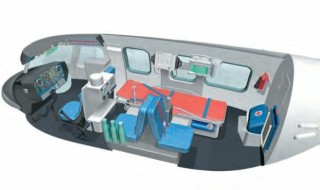

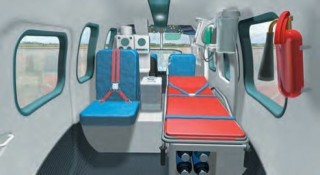

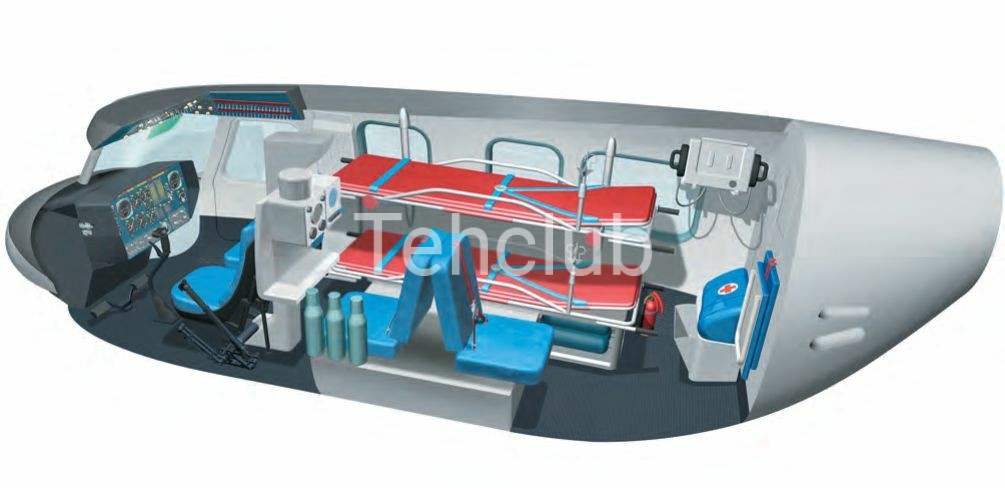

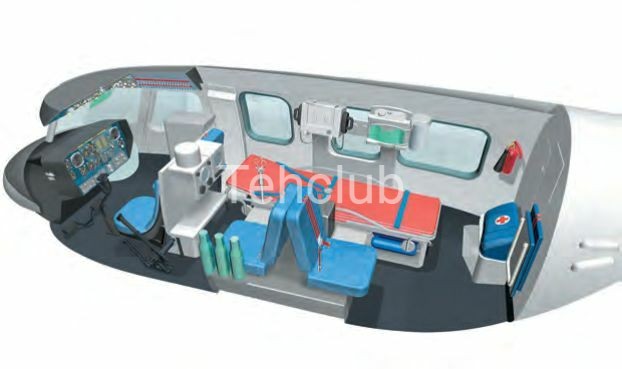

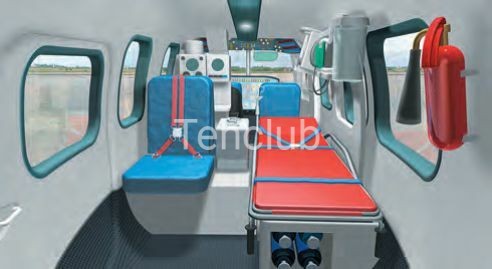

Equipment for emergency medicine
Specialized equipment
Search and rescue equipment
The helicopter in the medical and ambulance version can be additionally equipped with equipment for search and rescue:
- search spotlight;
- winch with a special seat.

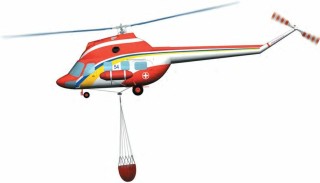

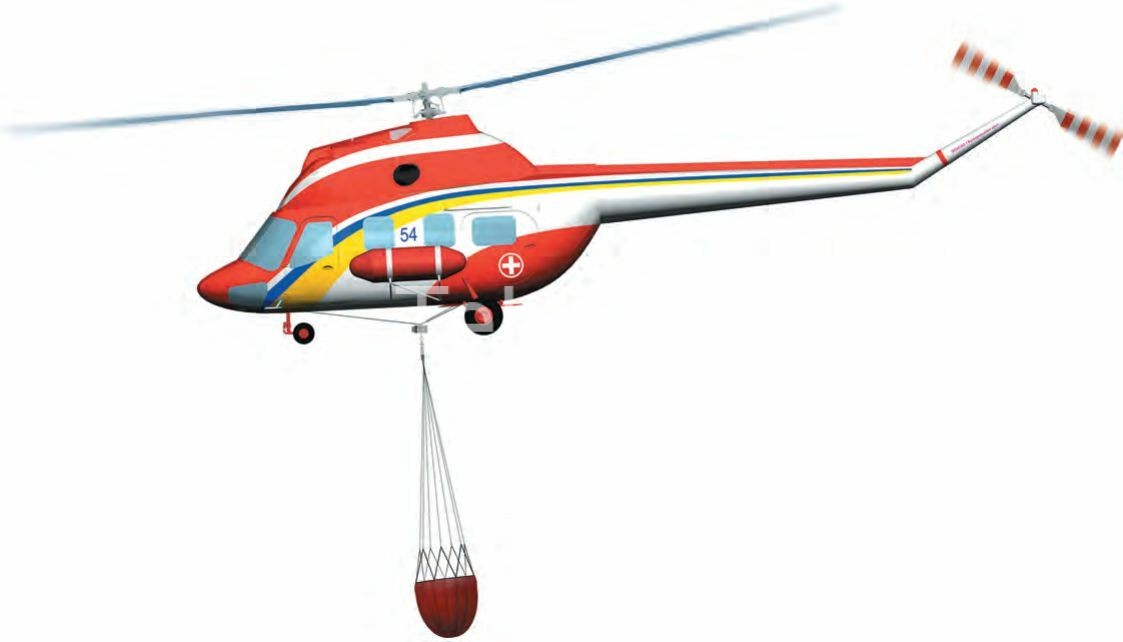

Fire extinguishing equipment
To extinguish fires in hard-to-reach areas, including mountainous and forested areas, the helicopter can be equipped with a fire extinguishing system.
The flight characteristics of the helicopter ensure high accuracy of water discharge.
Light multi-purpose helicopter "Scout" with new generation engines
The new light multi-purpose helicopter "Scout" with new generation engines is the result of the implementation of the light helicopter modernization program.
The modernization program involves extending service life by improving technical and economic indicators by installing new-generation engines.
Modernization is carried out simultaneously with capital restoration work, which ensures a reserve of the calendar service life, service life of the helicopter and its components at prices acceptable for operation.
Technical characteristics of the Scout helicopter with new generation engines
| Quantity/power, hp | AI-450M-B/2/430 |
| Maximum take-off weight, kg | 3 550 |
| Crew/passengers, persons | 1/8; 2/7 |
| Maximum speed, km/h | 220 |
| Cruising speed, km/h | 190 |
| Practical ceiling, m | 4 000 |
| Flight range with additional tanks (300x2), km | 1 000 |

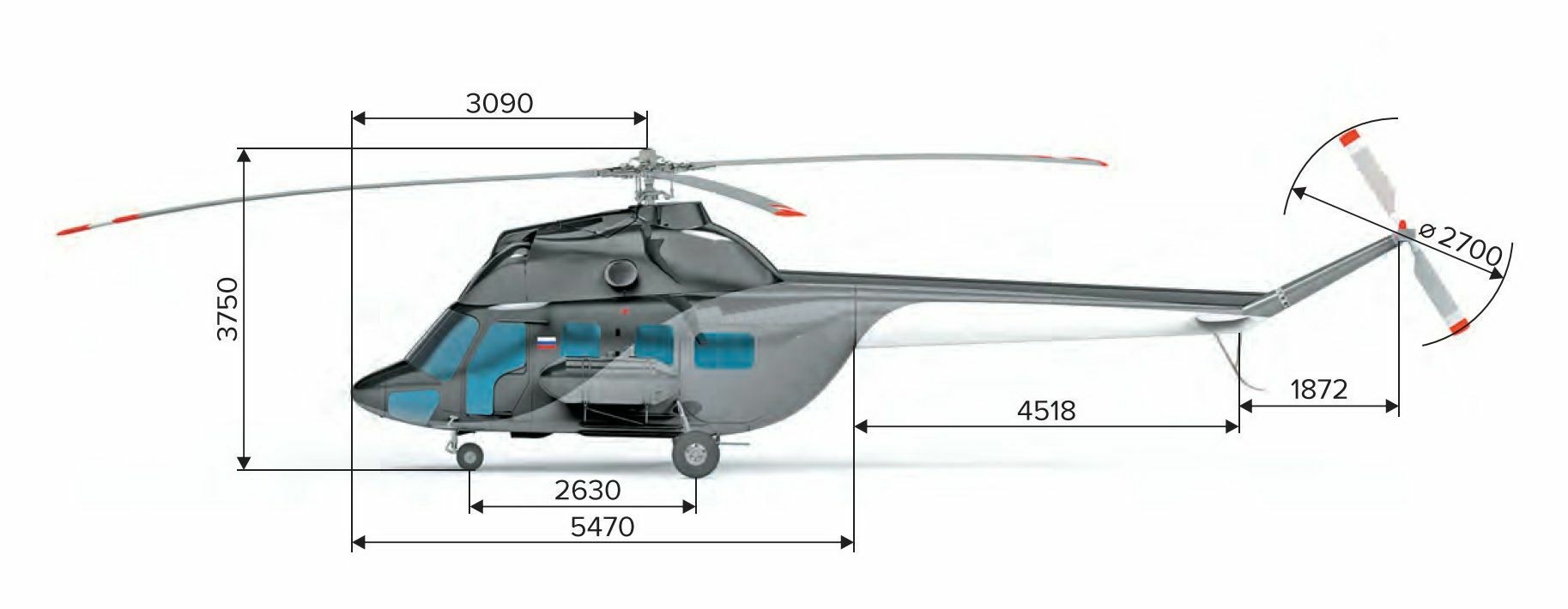

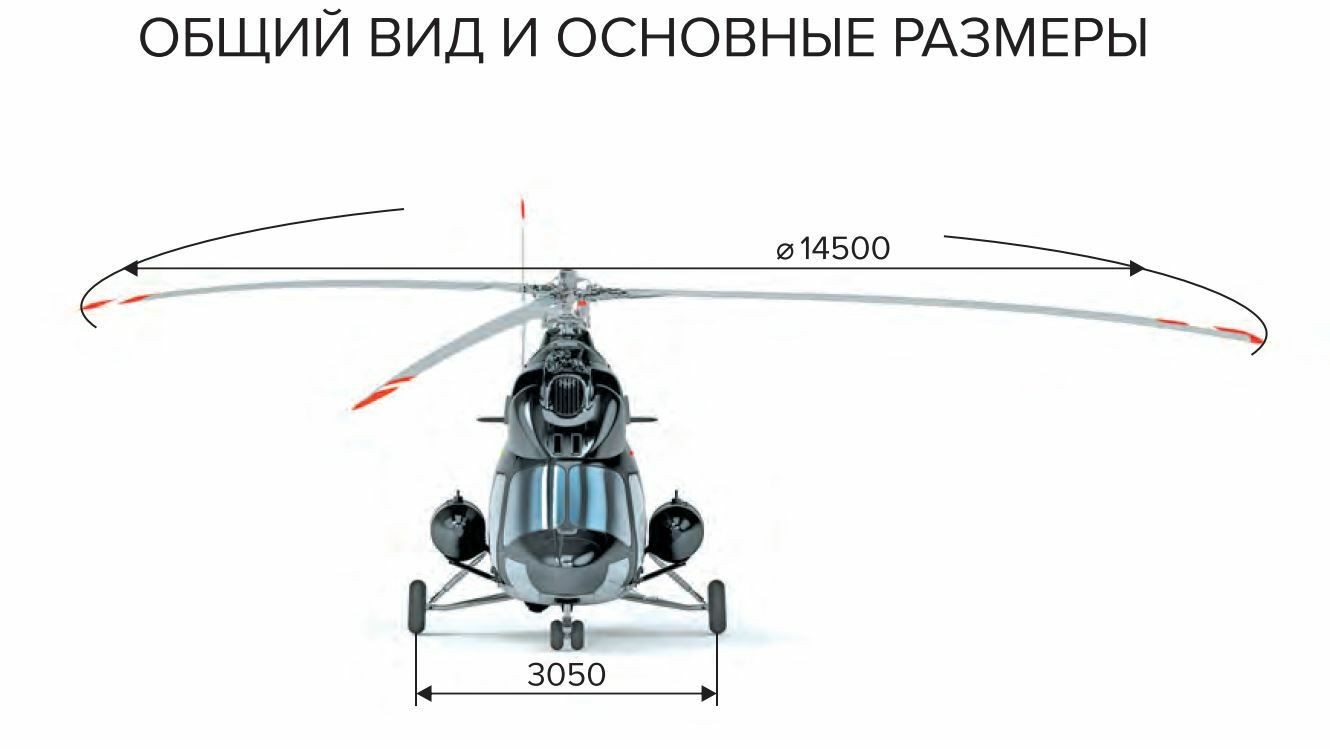

| Dimensions: | |
| Helicopter length, m | |
| - with rotating screws | 17,42 |
| - without blades | 11,94 |
| Helicopter width without blades, m | 3,25 |
| Helicopter height without tail rotor, m | 3,75 |
| Distance from the ground to the bottom point of the fuselage (clearance) at normal take-off weight, m | 0,4 |
| Chassis track, m | 3,05 |
| Chassis base, m | 2,63 |
| Main rotor diameter, m | 14,5 |
| Number of rotor blades | 3 |
| Tail rotor diameter, m | 2,7 |
| Number of tail rotor blades | 2 |

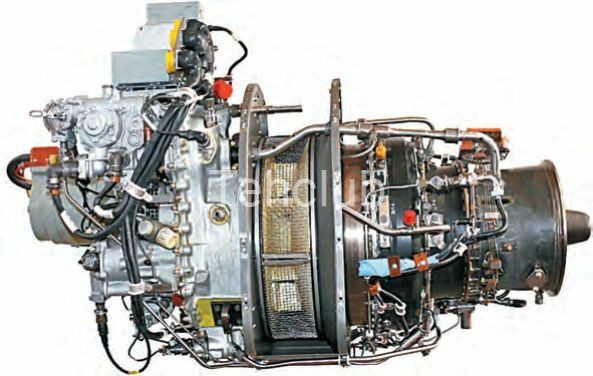

Technical characteristics of the new generation engine
| 30-minute mode power with one engine not running: | |
| Power, hp | 430 |
| Supported up to tn, C | +40 |
| Takeoff mode: | |
| Power, hp | 430 |
| Supported up to tn, C | +25 |
| Specific fuel consumption, kg/hp. h. | 0,284 |
| Maximum cruise: | |
| Power, hp | 300 |
| Supported up to tn, C | +25 |
| Specific fuel consumption, kg/hp. h. | 0,323 |
| Dry weight, kg | 115 |
- low specific fuel consumption
- high reliability
- high power
- simplicity and ease of maintenance
- high maintainability
- low specific gravity.
- State: New
- Documents: Sold with documents
Show full
