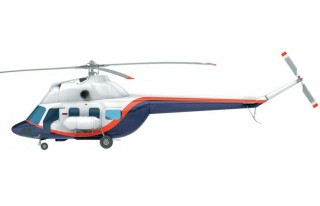

Sports helicopter "Scout"
Vendor code: 72020 22 October 2171 64
Light multi-purpose helicopter "Scout" with new generation engines, sports version
Designed to perform sports exercises according to international competition programs, as well as training flights, including for athletes of the highest category.
Manufactured in a lightweight version.
The wishes of world-class helicopter pilots were taken into account during the design.
Thanks to modernization, new opportunities are opening up for high performance sports, including aerobatics.
Light multi-purpose helicopter "Scout" with new generation engines
The new light multi-purpose helicopter "Scout" with new generation engines is the result of the implementation of the light helicopter modernization program.
The modernization program involves extending service life by improving technical and economic indicators by installing new-generation engines.
Modernization is carried out simultaneously with capital restoration work, which ensures a reserve of the calendar service life, service life of the helicopter and its components at prices acceptable for operation.
Technical characteristics of the Scout helicopter with new generation engines
| Quantity/power, hp | AI-450M-B/2/430 |
| Maximum take-off weight, kg | 3 550 |
| Crew/passengers, persons | 1/8; 2/7 |
| Maximum speed, km/h | 220 |
| Cruising speed, km/h | 190 |
| Practical ceiling, m | 4 000 |
| Flight range with additional tanks (300x2), km | 1 000 |
| Dimensions: | |
| Helicopter length, m | |
| - with rotating screws | 17,42 |
| - without blades | 11,94 |
| Helicopter width without blades, m | 3,25 |
| Helicopter height without tail rotor, m | 3,75 |
| Distance from the ground to the bottom point of the fuselage (clearance) at normal take-off weight, m | 0,4 |
| Chassis track, m | 3,05 |
| Chassis base, m | 2,63 |
| Main rotor diameter, m | 14,5 |
| Number of rotor blades | 3 |
| Tail rotor diameter, m | 2,7 |
| Number of tail rotor blades | 2 |
Technical characteristics of the new generation engine
| 30-minute mode power with one engine not running: | |
| Power, hp | 430 |
| Supported up to tn, C | +40 |
| Takeoff mode: | |
| Power, hp | 430 |
| Supported up to tn, C | +25 |
| Specific fuel consumption, kg/hp. h. | 0,284 |
| Maximum cruise: | |
| Power, hp | 300 |
| Supported up to tn, C | +25 |
| Specific fuel consumption, kg/hp. h. | 0,323 |
| Dry weight, kg | 115 |
- low specific fuel consumption
- high reliability
- high power
- simplicity and ease of maintenance
- high maintainability
- low specific gravity.
- State: New
- Documents: Sold with documents
