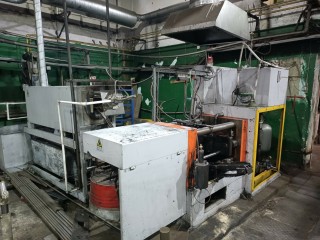

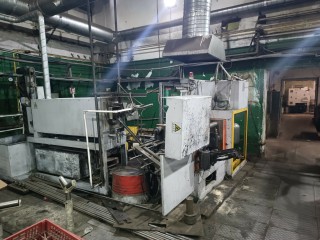

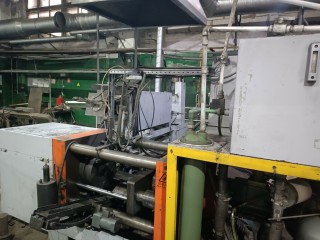

Hydraulic press 80t

Hydraulic press 80t, automatic

Furnace, system for supplying blanks and collecting forgings.

As part of an automatic complex for hot die forging.

In addition to the press, the complex includes equipment that is its integral part:

• Stamping equipment.
• Workpiece loader.

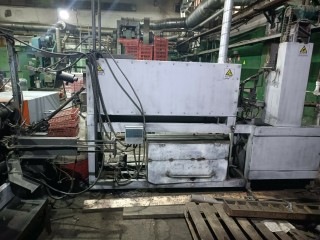

• Gas 2-channel automatic furnace for heating workpieces.

The press is in good condition, fully serviced and ready to work.

Options:

• The force of the slider is 80 tons.
• The slide stroke is 250 mm.
• Beats per minute 15-18 1/min.
• Speed ​​under load 100 mm/sec.
• Idle speed 360 mm/sec.
• Die plate 660x660x120 mm.
• The hole in the die plate is 275 mm.
• Max. the distance between the plates is 920 mm.
• The distance between columns is 500 mm.
• Working pressure in the hydraulic system is up to 17 MPa.
• Weight 4000 kg.
• Length 3400 mm.
• Width 1500 mm.
• Height 1900 mm.

• State: Used
• Payment: Wire transfer
• Documents: Sold without documents (lost)
