Punch-through installation AINUO AN9651TH (F)
Vendor code: 27104 19 November 219 4

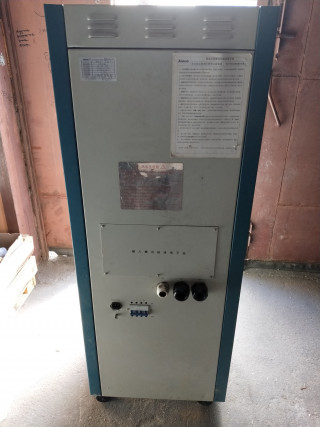

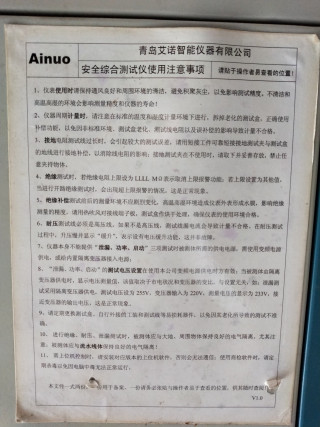

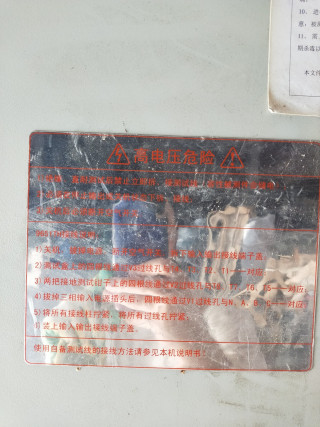

Breakout installation. 2011 release. Attaching photo. All cables are included. The installation is working. Help with certification is possible. The menu is in English. Upon request, we can send a video of the equipment operation.
Three Phase Compatible
Single phase for maximum speed
Three Phase 7 in 1 Electrical Safety Analyzer
Key features:
- Compliant with IEC60335, UL60335, GB4706 standards -2005, GB4943
- Three-phase, single-phase possible; three-phase load 20kVA, maximum load 60kVA
- Seven functions in one device: grounding, insulation resistance, AC high voltage test, testing DC high voltage, leakage current, power test and low voltage test
- 15 groups / 8-step test conditions, intelligent evaluation results, auto-compensation, auto-protection
- High speed test, maximum speed up to 0.5 s for a single sample.
- Overvoltage and undervoltage, discharge functions.
- Dynamic and static leakage current, high voltage test
- Auto-compensation, auto-protection, auto-recording, auto-evaluation of results, sound and light indication
- Serial interface, print, operation pedal, external alarm, external network card connection < li> For security test, margin of error 2%, for power test, margin of error 0.5%
- Both ground and delay can be supported for the DUT
- Feature preview, single setup screen, easy to use control
- Supports both 50Hz and 60Hz, Chinese and English control languages

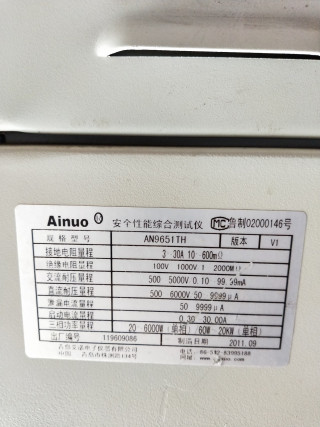

| Model | AN9651 TH (F) (7 in 1) |
| Display Type | 10.4 inches, 640x480, TFT LCD display |
| Capacity of the insulated transformer |
Three-phase: 20kVA, Single-phase: 6kVA |
| Voltage protection | Power, Start, Leakage current. Phase voltage 35A, protection 5 sec |
|
DUT connection type |
Single-phase, three-phase, three-line, three-phase, four-line |
| Ground type | Load Ground, Constant Load |
| DUT error | Sound and light alarms |
| Outside signal light | Red signaling |
| Controller interface | Separate for each function |
| Functional interface | RS232, external printer, remote control |
| Optional interface | RS485, GPIB, NIC, internal printing |
| Test Group | 15 groups, 8 steps / group |
| Vibration signal | Disable |
|
Model | AN9651 TH (F) (7 in 1) | |
| Grounding Test | No load output voltage | <12V |
| Output setting voltage | AC 3A-30A 50 Hz / 60 Hz 1A / step | |
| Output voltage accuracy | ± ( 2% of the set + 0.2A) | |
|
High resistance limit | OUT 10A 10 ~ 600m0; 10A | |
| Resistance to ground | 1mO | |
| Measure / Accuracy | 10 ~ 600mQ ± (2% of reading + 2mQ) | |
| Resistance compensation | 0 ~ 200mQ 1mO | |
| Measurement time / Bit depth | 0.5 ~ 999.9s 0.1s / step | |
| Insulation resistance test |
Declared Output Current / Voltage |
1VA (1000V / 1mA) 1mA |
| Output Voltage / Increase | DC: 500V / 1000V <1% (zero to full load) | |
| Output voltage ripple | Basic voltage load, 1000V / 1mA, <3% | |
|
Output voltage accuracy / Bit depth |
± 2% (of the set + 2V) 5V / step | |
| Insulation resistance | 1.0-2000MQ | |
| Lower limit of measurements / Bit depth | 1.0-99.9M 0 0.1MO / step 100-2000MQ 1MQ / step | |
| Insulation resistance accuracy | 1-200MD: ± (2% x visible + 2 calculated) 200-2000MQ: ± ( 5% x visible + 5 calculated ) | |
|
Time to reach the operating mode / Bit depth |
0.1 ~ 999.9s 0.1s | |
| Delay the result | 0.3 ~ 10.0s (counting from the time of entering the working mode ) | |
| Test duration | 0.5-999.9s 0.1s | |
| AC High Voltage Test | Output voltage | 500VA (AC: 5000V / 100mA) |
| Output voltage frequency / Additional terms |
500-5000V 50Hz / 60Hz <2% (from full discharge to full charge) | |
| Output voltage characteristics / Measurement accuracy | Cold start AC: 500-5000V Hot start AC: 500-2500V 5V / step ± ( 2% of the set + 5V < / span> ) | |
| Dynamic leak signal | Upper limit: 0.10-99.99mA ; Lower limit: 0.00-99.99mA 0.01mA / step | |
| Capacitive current compensation / Bit width | 0.00- 5.00mA 0.01mA | |
| Outgoing Primary Voltage | (0% ~ 99%) from test voltage, from 0V to primary voltage 200ms interval | |
|
Dynamic Leakage Voltage Measurement Options |
0.10-99.99mA 0.01mA | |
| Dynamic leakage voltage measurement error |
2% of the result +2 of the calculated | |
| Test duration | 0.5-999.9 sec | |
| Time to run | 0.1-999.9 sec | |
| Ramp time | 0.0-999.9 seconds (at the end of the test) | |
| High Voltage Test | Output voltage | 60VA (DC: 6000V / 10mA) |
| Output voltage frequency / Additional terms |
500-6000V <2% (from full charge to full charge) | |
| Output Voltage Characteristics / Accuracy dimensions | Cold start : DC 500-6000V Hot Start : DC 500-2500V 5V / step ± ( 2% of the set + 5V < / span> ) | |
| Dynamic leak signal | Lower limit: 50-9999 uA ; Lower limit: 0-9999m A 1m A | |
|
Capacitive current compensation / Bit width |
0-500 mA 1m A | |
| Outgoing Primary Voltage | (0-99%) of test voltage, from 0V to primary voltage 200ms interval | |
| Dynamic Leakage Voltage Measurement Options | 50-9999 u 1 and A | |
| Dynamic leakage measurement uncertainty stresses | ± (
Show full |
