Pontoons, bridges, crossings

Price by request

Vendor code: 23003 2767 16


Multi-purpose modular pontoon complexes made of plastic and metal are sold.

Our company specializes in the production of modular floating platforms based on pontoons, according to your technical specifications. The material of the pontoons is plastic or metal.

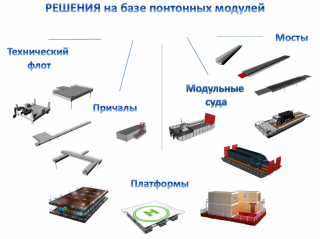

Ready-made solutions based on pontoon modules:

  • technical fleet
  • berths
  • platforms
  • modular ships
  • bridges

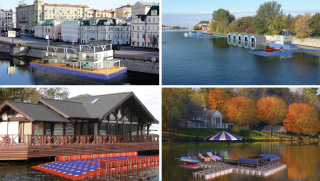

Platforms:

  • platform for cabins on the water
  • floating hotel platform
  • water scene
  • mobile floating helipad
  • houseboat platform

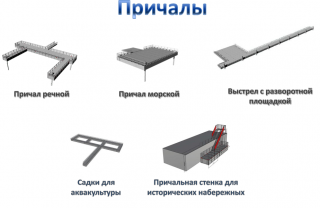

Berths:

  • river pier
  • sea ​​berth
  • roundhouse shot
  • aquaculture cages
  • quay wall for historical embankments

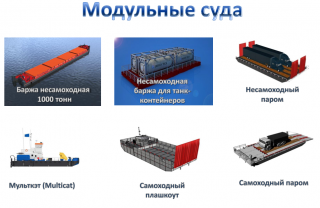

Modular ships:

  • non-self-propelled barge 1000 tons
  • non-propelled ferry
  • self-propelled ferry

Bridges:

  • pier bridge
  • bridge without supports
  • winter road bridge

 Construction of floating facilities using custom modular systems.

We have our own design bureau. The main production under the control of our specialists will be in your region, thanks to this you will receive your work site in the shortest possible time and certification of the maritime and river register. The advantage of pontoons is quick assembly and disassembly, transportation by platforms in dimensions to the place of operation, and reusable use. Send an application for the purchase of a modular pontoon with your technical specifications and we will prepare an offer. List of necessary initial information for designing a floating structure based on pontoons.

  1. Dimensions of the floating structure to calculate the required number of elements.
  2. Planned goals and functions of the floating structure:

- the maximum number of people who can be on the floating structure at the same time or the maximum permissible load when using machinery or equipment;              - type, tonnage, sketches (drawings) of water vessels that are planned to be moored to the floating structure.

  1. The type of water body (river, lake, etc.) where it is planned to install the floating structure.
  2. Depth and characteristics (description) of the seabed to determine the design of the anchor device.
  3. The difference in water line level before and after low tide.
  4. The level of waves in bad weather and the average value of waves for the year.
  5. Average climatic conditions for at least one year (preferably based on the last 10 years).
  6. Sea current parameters when using a floating structure in the open sea.
  7. Wind speed.
  8. The following information when using a floating structure moored to various engineering structures (photos are best):

- the distance from the surface of the water to the surface of existing piers or embankments during low and high tide; - parameters (dimensions) of the existing dock or berth; - any other available information about the place of use of the floating structure.

Advantages of our technical solutions:

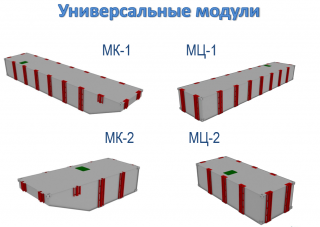

  • Pontoon dimensions standardized for cargo containers in length and width (12192x2438 mm, or 6058x2438 mm). The height varies at the request of the customer (from 1 to 2.5 m) depending on the load capacity, draft depth, etc. Thus, the tasks of delivering and moving pontoons by road, rail and other transport are significantly simplified.
  • Ease of assembly and reliable fastenings. Connection with special locks along the entire height does not require the involvement of divers. At the same time, the carrying capacity of one pontoon is 20 tons. That is, 3-4 pontoons assembled into a module, for example, a loading platform, can easily withstand 60 tons or more.
  • The versatility of modular assembly allows you to design pontoons to create a wide variety of mechanical means, such as: floating bridges and crossings, piers, moorings, self-propelled and non-self-propelled cargo platforms, ship-lifting complexes, barges, landing stages, floating cottages and cabins, special-purpose sites (diving, for the placement and operation of special equipment, for storing materials).
  • High-quality marine steel-3 with a thickness of 4 to 12 mm is used, based on the tasks and wishes of the customer. The chemical composition of steel is controlled by our own laboratory.
  • Certification: GIMS, RRR, RMRS. Makes freedom possible commercial use of modular complexes.
  • According to the customer’s technical specifications, floating metal pontoons can be easily converted into self-propelled ones. Outboard or fully certified marine inboard engines (with all necessary control equipment) can be installed if the need arises.
  • Possibility of installing additional equipment: ramp, dredger, beam crane, windlasses, anchors, winches, thrusters, dismantled fencing, etc. The technical support of the production base, the constantly replenished and updated warehouse range of ship equipment, and the high level of the engineering and technical team allow us to solve almost any problem.
  • State: New
